SELECT A DIAGRAM
01 - Cover
02 - Backguard

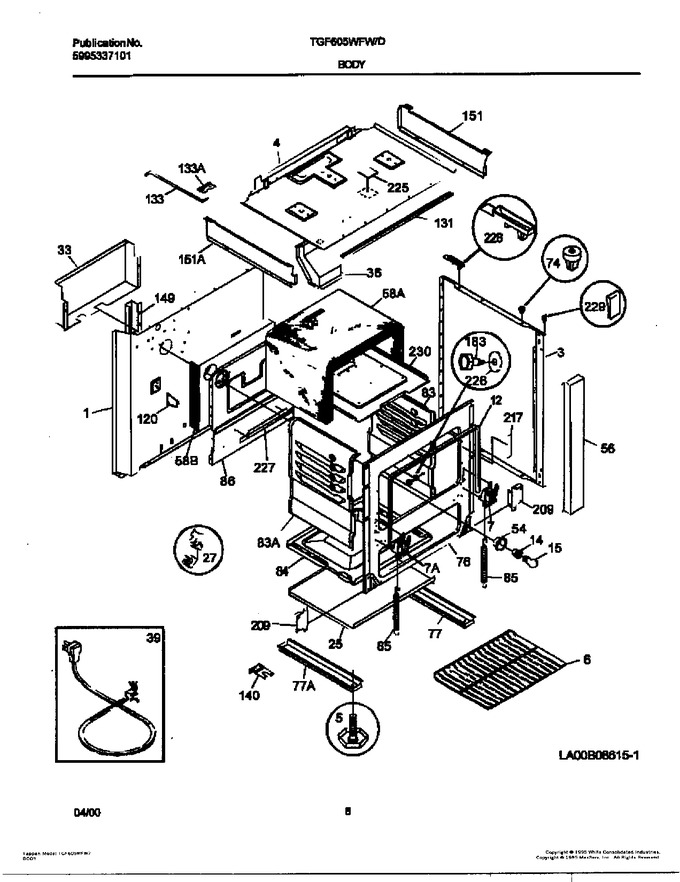

03 - Body
04 - Top/drawer
05 - Door
06 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318076300 | Back-main |
|
- | |||||
| 3 | 5303051061 | Panel-body Side (white) |
|
- | |||||
| 4 | 318133500 | Burner Box, Bottom |
|
- | |||||
| 5 | 318175510 | Screw-levelling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 5303311539 | Rack,oven |
|
- | |||||
| 7 | 3205894 | Hinge-oven Door, Rh |
|
$ 55.91 | |||||
| 7 | 3205895 | Hinge-oven Door, Lh |
|
- | |||||
| 8 | 5303286741 | Shield, Bottom |
|
- | |||||
| 12 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 25 | 318121700 | Panel-oven Bottom |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 33 | 318114301 | Cover Wire Back |
|
- | |||||
| 36 | 318089700 | Flue |
|
- | |||||
| 39 | 5303308453 | Cord,electric Power |
|
- | |||||
| 54 | 5303271606 | Housing,oven Light |
|
- | |||||
| 56 | 08013993 | Trim-bodyside, White |
|
- | |||||
| 58 | 3017172 | Insulation, Oven Back |
|
- | |||||
| 58 | 3017171 | Insulation, Oven Wrapper |
|
- | |||||
| 74 | 3051063 | Grommet,bodyside |
|
- | |||||
| 76 | 318158302 | Front Frame,complete |
|
- | |||||
| 77 | 5303210256 | Rail-base, Lh |
|
- | |||||
| 77 | 5303210255 | Rail,base ,rh |
|
- | |||||
| 83 | 318134200 | Liner-oven, Lh |
|
- | |||||
| 83 | 318134300 | Liner,oven ,rh |
|
- | |||||
| 84 | 318134600 | Liner,oven ,bottom |
|
- | |||||
| 85 | 5308008028 | Spring-oven Door |
|
- | |||||
| 86 | 318134800 | Liner-oven, Back |
|
- | |||||
| 120 | 3051096 | Support,oven Rear |
|
- | |||||
| 131 | 318163000 | Support-cont Panel |
|
- | |||||
| 140 | 3131041 | Support Anti-tip |
|
- | |||||
| 149 | 3131046 | Channel,wiring |
|
- | |||||
| 183 | 08008037 | Bolt, Shoulder |
|
- | |||||
| 209 | 5303286692 | Support,rail |
|
- | |||||
| 217 | 316042301 | Plate-warning,217 |
|
- | |||||
| 225 | 3018339 | Plate,observation |
|
- | |||||
| 226 | 3201899 | Washer,hinge Assy |
|
- | |||||
| 227 | 3131038 | Support-oven Bottom |
|
- | |||||
| 228 | 5303311537 | Grommet-main Top |
|
- | |||||
| 229 | 3131791 | Clip,bodyside |
|
$ 19.01 | |||||
| 230 | 5303324119 | Liner-oven, Top |
|
- | |||||
| *65408 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 | |||||
| *65409 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *65410 | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| *65411 | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| *65412 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| 133A | 3051554 | Rod-maintop Support |
|
- | |||||
| 133B | 6743 | Bracket-rod, Main Top |
|
- | |||||
| 151A | 5303131054 | Shield,bodyside ,lh |
|
- | |||||
| 151B | 5303131053 | Shield-bodyside,rh |
|
- |
