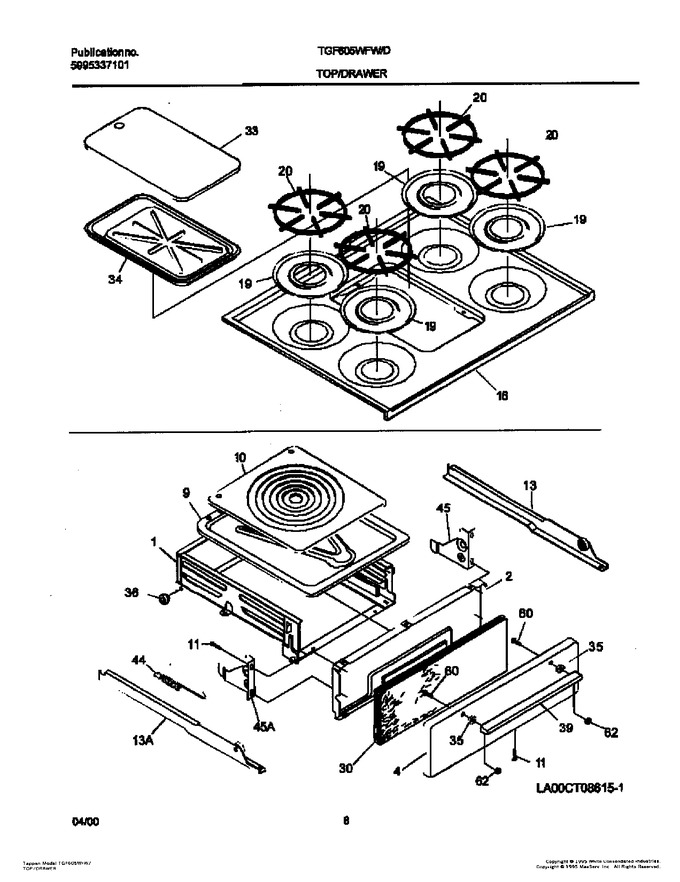

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107000		Drawer,broiler		Appelez-nous	-
2	318135100		Liner,broiler Door		Appelez-nous	-
4	5303281361		Panel-drawer, White		Appelez-nous	-
9	318126200		Pan-broiler		Appelez-nous	-
13	318136700		Channel-drawer		Appelez-nous	-
13	318136701		Channel-drawer		Appelez-nous	-
16	5308014034		Main Top, White		Appelez-nous	-
19	5308011431		Pan-burner, (4)		Appelez-nous	-
20	5303272274		Grate, (4)		Appelez-nous	-
30	3017184		Insulation, Broiler Drawer		Appelez-nous	-
33	5308013949		Cover-griddle, White		Appelez-nous	-
34	318102600		Griddle				$ 188.24
35	5303310504		Spacer-door Handle,(2)		Appelez-nous	-
37	318153200		Rail-drawer Rh		Appelez-nous	-
39	5308008085		Handle,drawer		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
45	318024401		Hinge-broiler,lh		Appelez-nous	-
*65413	3051050		Screw-shoulder				$ 12.29
*65414	3201899		Washer,hinge Assy		Appelez-nous	-
*65415	08002868		Screw 10 X 24 X 1/2				$ 14.18
*65416	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*65417	5303131801		Screw, 10 X 3/8		Appelez-nous	-
*65418	5303300414		Spacer, Cork & Rubber				$ 13.18
*65419	5303310510		Screw <10-24 X 5/8 >				$ 14.18
*65420	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
*65421	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
