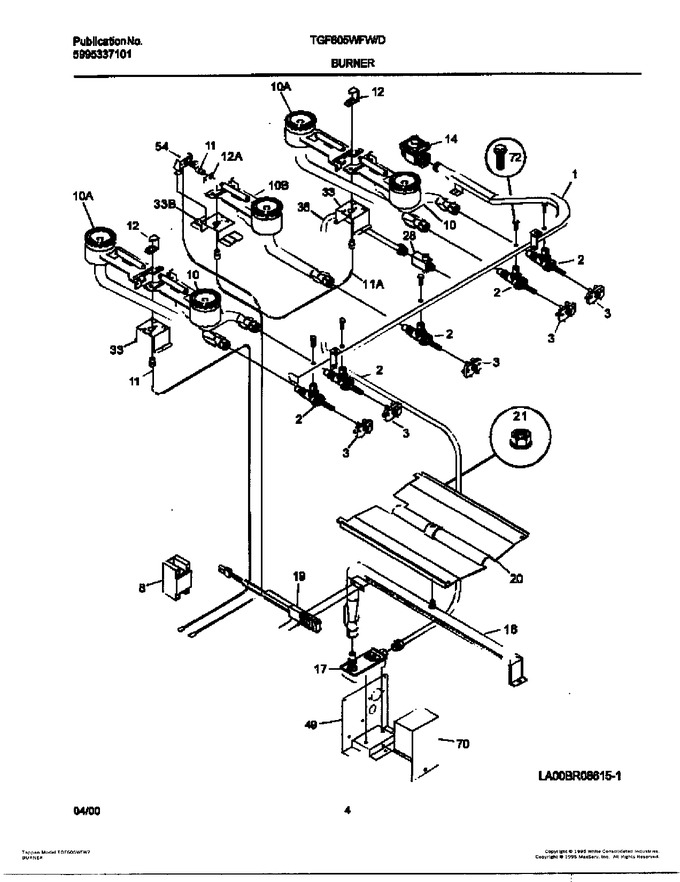

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177400		Manifold		Appelez-nous	-
2	318087100		Valve-top Burner		Appelez-nous	-
3	316032000		Switch-igniter, (4)				$ 58.70
8	5303912606		Spark Module				$ 134.67
10	5303131079		Burner,top ,rear				$ 129.78
10	5303311552		Burner,griddle		Appelez-nous	-
10	5303311551		Burner-top, Front		Appelez-nous	-
11	3203968		Ignitor-top Burner, Base		Appelez-nous	-
11	5303210548		Ignitor,top Burner ,front		Appelez-nous	-
12	5303311555		Retainer-igniter, Griddle		Appelez-nous	-
12	5303311554		Retainer-igniter		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
17	318087200		Valve-safety		Appelez-nous	-
18	5303202752		Burner-oven				$ 26.83
19	5303935066		Ignitor-oven			Immediately	$ 59.58
20	3203676		Baffle,oven Burner		Appelez-nous	-
33	5303210472		Bracket,burner Mtg ,griddle		Appelez-nous	-
33	5303210471		Bracket-burner Mtg		Appelez-nous	-
36	5303323849		Tube		Appelez-nous	-
49	3131069		Bracket,safety Valve		Appelez-nous	-
54	5303311553		Bracket-ignitor, Griddle		Appelez-nous	-
70	3131088		Cover,safety Valve		Appelez-nous	-
72	5303323141		Screw Valve <1/4-20x 5/16		Appelez-nous	-
*65431	3051050		Screw-shoulder				$ 12.29
*65432	08002868		Screw 10 X 24 X 1/2				$ 14.18
*65433	08008009		Bushing,snap		Appelez-nous	-
*65434	08008051		Bushing - Nylon Snap		Appelez-nous	-
*65435	5303308450		Screw, 8 X 3/8		Appelez-nous	-
28A	318087400		Valve-shut Off		Appelez-nous	-
28B	5303131099		Valve-shut Off		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
