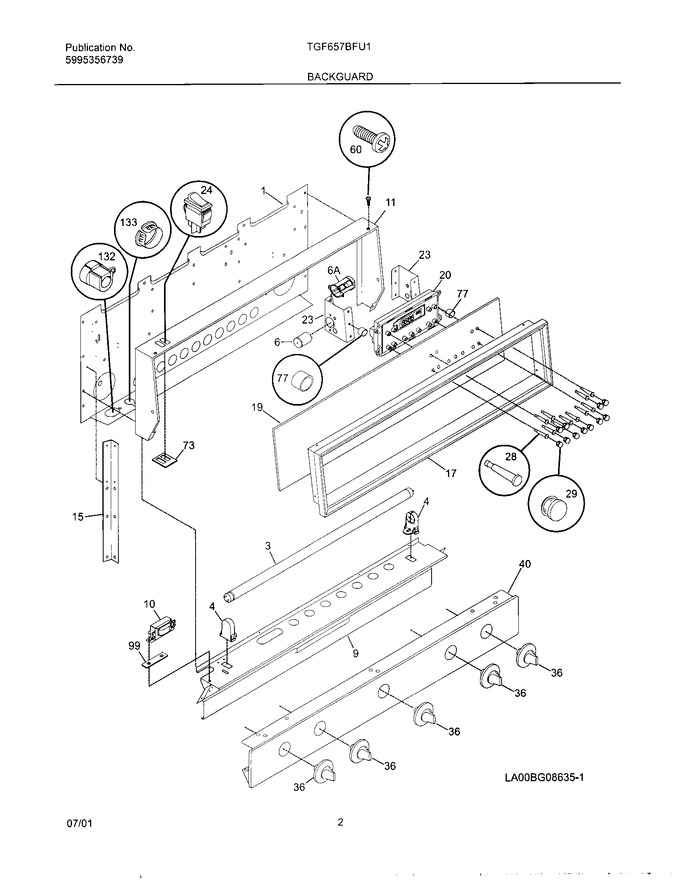

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318022401		Shield,backguard ,rear Wall		Appelez-nous	-
3	5303286690		Lamp-fluorescent, Backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
9	318162003		Shield-insulation		Appelez-nous	-
11	5303311529		Trim-wrapper		Appelez-nous	-
15	5308013296		Support,backguard ,(2)		Appelez-nous	-
17	5308013930		Trim-control Panel		Appelez-nous	-
19	318001004		Panel-control, Glass		Appelez-nous	-
23	318015801		Bracket,clock Mtg ,(2)		Appelez-nous	-
28	316080600		Shaft,push Button ,black ,clock/timer/eoc				$ 49.41
29	318017800		Knob,clock ,black ,(11)				$ 53.59
36	318016209		Knob,control		Appelez-nous	-
40	318005300		Panel-manifold		Appelez-nous	-
60	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
73	318141200		Support,switch		Appelez-nous	-
77	318014100		Spacer		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
133	08008009		Bushing,snap		Appelez-nous	-
6A	318110400		Receptacle,starter				$ 52.29
F10	318122802		Ballast-lamp		Appelez-nous	-
F20	318010300		Clock/timer, Electronic		Appelez-nous	-
F24	5308015487		Switch,oven Light ,rocker				$ 61.43
F6	5308068062		Starter,lamp				$ 30.46
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303324180		Screw,6 X 3/8		Appelez-nous	-
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
