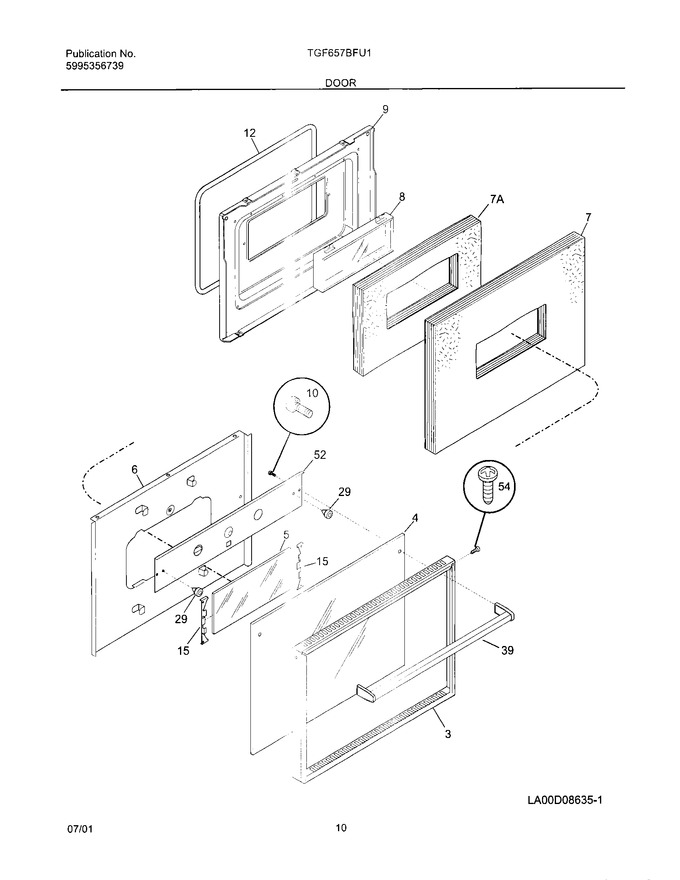

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318083622 | Trim,oven Door |
|
- | |||||
| 4 | 318210000 | Glass,outer Door |
|
- | |||||
| 5 | 318211400 | Glass,oven Door ,inner |
|
- | |||||
| 6 | 5303311534 | Shield-wool |
|
- | |||||
| 7 | 3131761 | Insulation, Oven Door |
|
- | |||||
| 8 | 5303271567 | Glass,oven Door ,inner |
|
- | |||||
| 9 | 318112800 | Liner-oven Door |
|
- | |||||
| 10 | 5304404019 | Screw,6 - 32 X 37/64 |
|
- | |||||
| 12 | 5303311533 | Seal,oven Door |
|
$ 172.66 | |||||
| 15 | 318122100 | Bracket,glass Mtg |
|
- | |||||
| 29 | 318147410 | Bumper,base |
|
- | |||||
| 39 | 5303286852 | Handle,oven Door |
|
- | |||||
| 52 | 318132900 | Shield,oven Door ,black ,top |
|
- | |||||
| 54 | 5303308456 | Screw,8-18 X 0.531 ,black ,door Frame |
|
$ 10.06 | |||||
| 7A | 5304418122 | Insulation,oven Door |
|
- |
