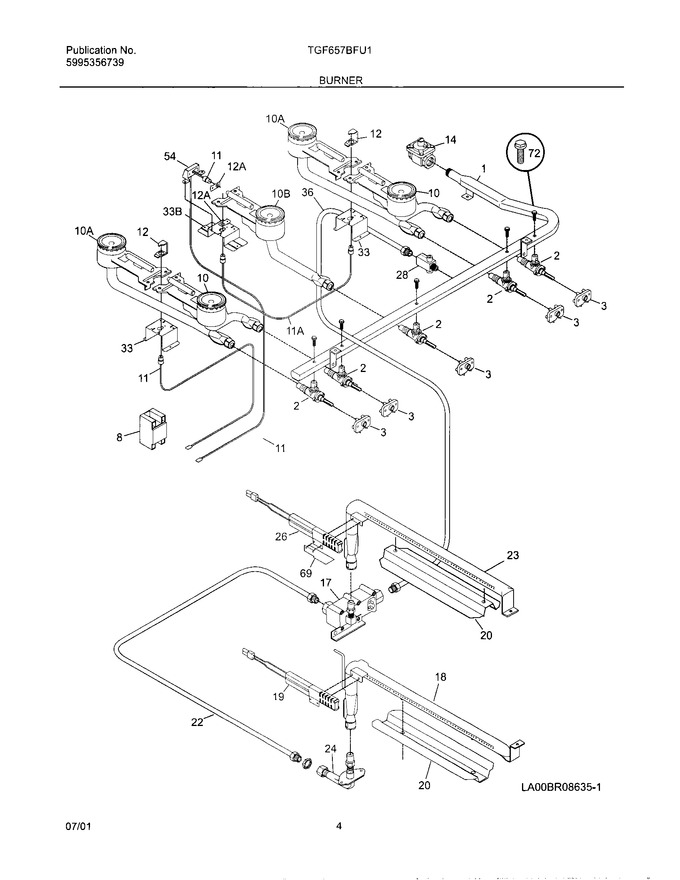

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303311554		Retainer,ignitor		Appelez-nous	-
20	5308011508		Baffle,oven Burner		Appelez-nous	-
22	5303311546		Tubing,valve		Appelez-nous	-
28	318087400		Valve-shut Off		Appelez-nous	-
33	5303210471		Bracket-burner Mtg		Appelez-nous	-
54	5303311553		Bracket-ignitor, Griddle		Appelez-nous	-
69	3131871		Shield Oven Ignitor				$ 7.93
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
12A	5303311555		Retainer,ignitor ,griddle		Appelez-nous	-
33B	5303210472		Bracket,burner Mtg ,griddle		Appelez-nous	-
F1	318177400		Pipe,manifold		Appelez-nous	-
F10	318176200		Burner,top ,front		Appelez-nous	-
F10A	318176201		Burner,top ,rear		Appelez-nous	-
F10B	318176400		Burner,top ,griddle		Appelez-nous	-
F11	318148504		Ignitor,top Burner		Appelez-nous	-
F11A	5303210548		Ignitor,top Burner ,front		Appelez-nous	-
F14	5308007974		Regulator-pressure				$ 309.02
F17	316031400		Valve-safety		Appelez-nous	-
F18	5303311544		Burner-oven				$ 355.09
F19	5303935066		Ignitor,oven Burner   (Replaces: 318177720)			Immediately	$ 59.58
F2	318087100		Valve-top Burner		Appelez-nous	-
F23	5303311548		Burner,oven Broil		Appelez-nous	-
F24	5303311547		Elbow,mixer		Appelez-nous	-
F26	318177730		Ignitor,broil Burner		Appelez-nous	-
F3	316032000		Switch,ignitor ,(4)				$ 58.70
F36	5303311545		Tubing,shut Off/safety		Appelez-nous	-
F8	5304518635		Module,spark   (Replaces: 316135700)				$ 87.21
NI	3051050		Screw-shoulder				$ 12.29
NI	08008009		Bushing,snap		Appelez-nous	-
NI	316048200		Screw,hex Washer Head ,1/4-20 X 0.31 ,valve Mounting,w/gasket		Appelez-nous	-
NI	5303311549		Screw-burner Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
