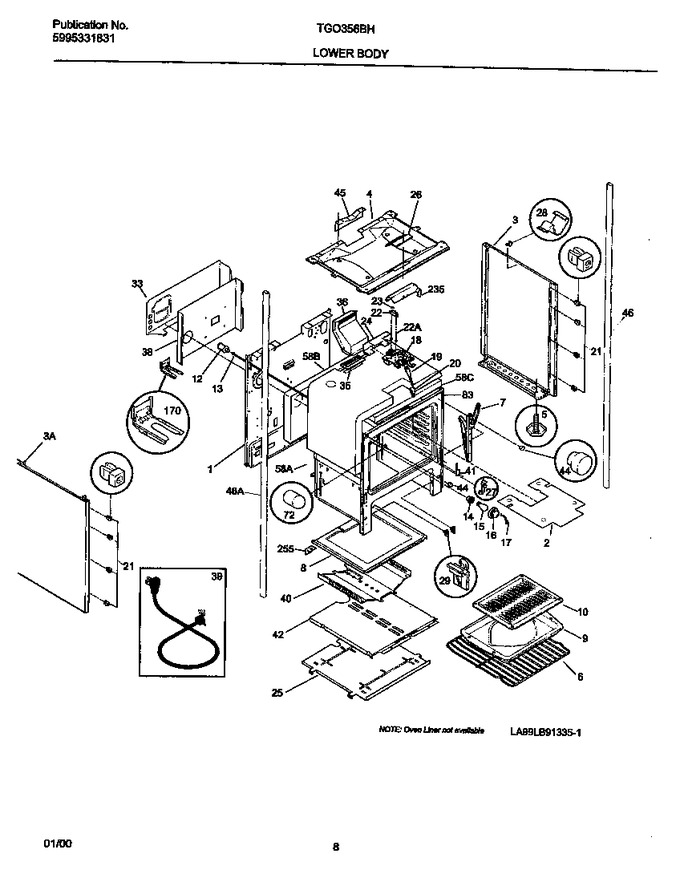

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316081034		Panel-bodyside,black ,rh		Appelez-nous	-
4	3011597		Burner Box		Appelez-nous	-
5	316107300		Screw-levelling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	5303300406		Panel-oven Bottom		Appelez-nous	-
9	318138800		Pan-broiler		Appelez-nous	-
10	318126400		Insert-broiler Pan		Appelez-nous	-
14	316116400		Socket-light			Immediately	$ 56.10
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
17	316087500		Retainer,lens				$ 56.70
18	5303015453		Latch-door				$ 172.04
19	5303131357		Handle-latch				$ 37.33
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	08067978		Stud Spacer		Appelez-nous	-
22	5303269499		Switch-latch				$ 20.53
23	08067776		Fastener-push-on		Appelez-nous	-
24	3051413		Shield-latch		Appelez-nous	-
25	5303288580		Shield-bake Lower,lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	08067754		Clip-thermo Bulb		Appelez-nous	-
28	3011813		Clip,wire ,bodyside				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	3131931		Flue		Appelez-nous	-
39	5304534000		Cord,electric Power   (Replaces: 3131425)			Immediately	$ 33.37
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
44	3131903		Bumper				$ 55.36
45	08068018		Shield-wire		Appelez-nous	-
46	5303208643		Tube-post Rh		Appelez-nous	-
46	5303208642		Tube-post Lh		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
58	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
170	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
235	3131593		Shield-latch, Top		Appelez-nous	-
255	316064600		Support,oven Bottom				$ 18.95
*31521	3131737		Washer-hinge,black				$ 5.59
*31522	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*31523	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*31524	316116000		Screw-anti Tip, 1.75`` Concrete				$ 12.89
*31525	3131691		Wiring Harness,main		Appelez-nous	-
*31526	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
