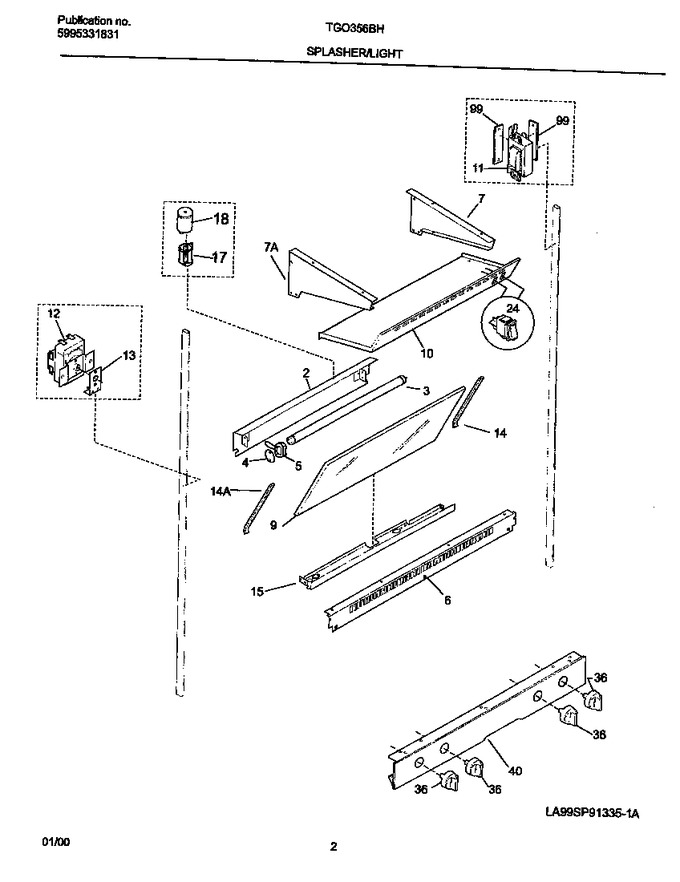

SELECT A DIAGRAM

01 - Cover


02 - Burner


03 - Lower Body


04 - Top/drawer


05 - Lower Door


06 - Splasher


07 - Control Panel


08 - Upper Body


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318189400		Reflector,work Light		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303290187		Receptacle		Appelez-nous	-
6	316084301		Trim-vent		Appelez-nous	-
7	3200526		Support-upper Oven, Rh		Appelez-nous	-
7	3200527		Support-upper Oven,lh		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
10	316012900		Panel-splasher-upper		Appelez-nous	-
11	316099800		Ballast-lamp		Appelez-nous	-
12	08067928		Thermostat-oven, Sc		Appelez-nous	-
13	3051348		Angle-s/c Bracket		Appelez-nous	-
14	08010549		Trim-splasher, Rh		Appelez-nous	-
14	5303269815		Trim-splasher,lh		Appelez-nous	-
15	318002800		Trim-splasher Filler		Appelez-nous	-
17	318110400		Holder,starter				$ 52.29
18	5308068062		Starter,lamp				$ 30.46
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
36	316023020		Knob-control, (4)		Appelez-nous	-
40	316086816		Panel-manifold		Appelez-nous	-
99	5303304544		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
