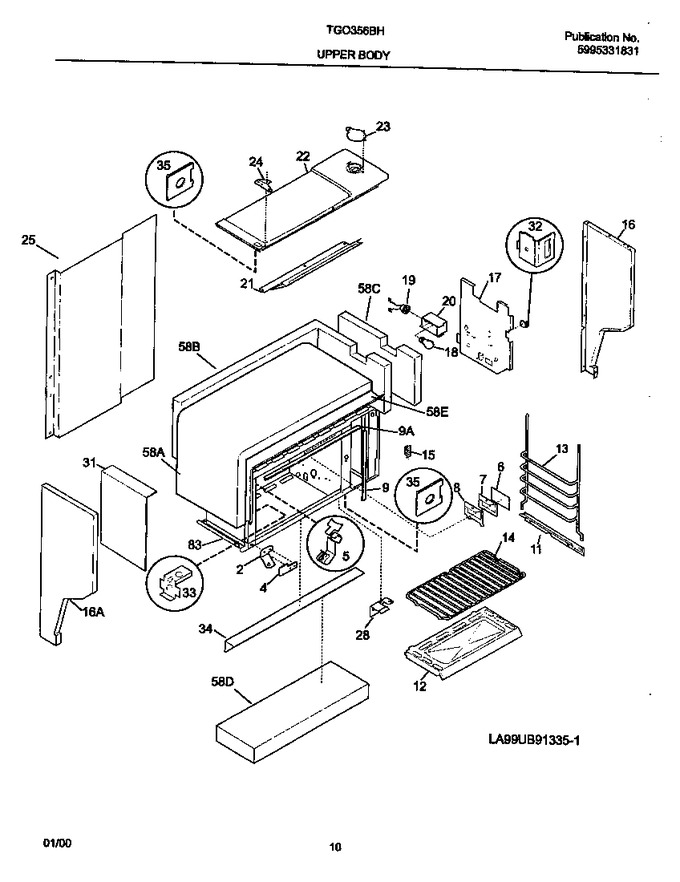

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303051166		Hinge-oven Door		Appelez-nous	-
4	08011665		Plate-bottom Hinge		Appelez-nous	-
5	5303284616		Clip-thermo Bulb				$ 9.86
6	08011668		Glass-oven Light Lens		Appelez-nous	-
7	3200506		Gasket-oven Light		Appelez-nous	-
8	08011669		Cover-light, Upper		Appelez-nous	-
11	318073101		Glide-oven Rack		Appelez-nous	-
12	318109801		Bottom-oven		Appelez-nous	-
13	5303290121		Glide		Appelez-nous	-
14	08011675		Rack-oven, Flat		Appelez-nous	-
15	318090310		Latch-door   (Replaces: 318090300)			Immediately	$ 44.61
16	318025901		Panel-bodyside, White, Rh		Appelez-nous	-
16	318025911		Panel-bodyside,white ,lh		Appelez-nous	-
17	5303208706		Shield-wool		Appelez-nous	-
20	5303290105		Box & Wires Assy		Appelez-nous	-
21	3200505		Flue, Back		Appelez-nous	-
22	5303290177		Panel-top, Upper		Appelez-nous	-
23	318036701		Cover-outlet		Appelez-nous	-
24	5303290130		Hinge-oven Door, Upper Oven		Appelez-nous	-
25	5303290095		Back-main		Appelez-nous	-
32	3200500		Bracket-connector		Appelez-nous	-
33	3200519		Retainer, Upper Ovn Brnr		Appelez-nous	-
34	5304403075		Xxangle-wool Sh		Appelez-nous	-
35	5303290119		Fastener		Appelez-nous	-
58	318132607		Insulation		Appelez-nous	-
58	318132602		Insulation		Appelez-nous	-
58	3204440		Reflector, Aluminum Foil		Appelez-nous	-
58	318132601		Insulation		Appelez-nous	-
83	318109600		Liner-oven,comp.		Appelez-nous	-
