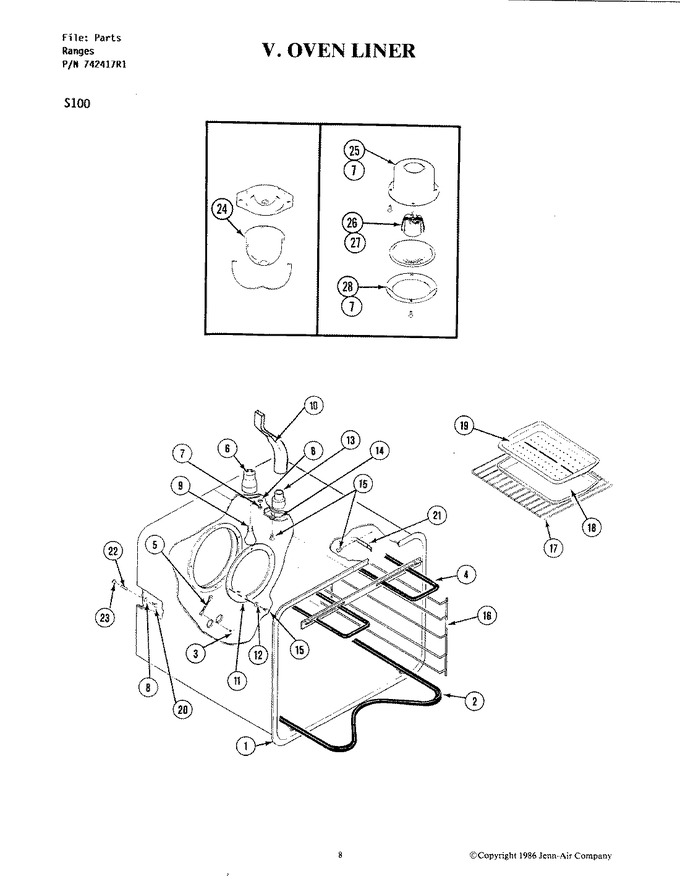

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y702618		Clip, Oven	1-4	Appelez-nous	-
1	WP210720		Rivet   (Replaces: 701662)	1-4			$ 12.14
1	712374		Weld, Oven Assembly	4	Appelez-nous	-
1	Y712248		Weld, Oven Assembly	3	Appelez-nous	-
1	712012		Weld, Oven Assy.	1-2	Appelez-nous	-
2	712247		Element, Bake (208v)	1-4	Appelez-nous	-
2	WPY04100019		Element, Bake (240v)   (Replaces: Y702550)	1-4			$ 116.29
3	WP179051		Screw   (Replaces: 708764)	1-4		Immediately	$ 7.16
4	712125		Element, Broil 208v	1-4	Appelez-nous	-
4	WPY04100015		Element, Broil 240v   (Replaces: Y702551)	1-4			$ 137.82
5	702643		Wire, Ground	1-4	Appelez-nous	-
6	W10124350		Not Required Part Or See Note	4	Appelez-nous	-
6	715281		Receptacle, Light	1-3	Appelez-nous	-
7	715485		Screw	1-3	Appelez-nous	-
7	703773		Screw	4	Appelez-nous	-
8	701736		Washer	1	Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
10	702290		Tube, Vent	1	Appelez-nous	-
11	702891		Plate, Back	1	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	3-4	Appelez-nous	-
12	W10124350		Not Required Part Or See Note	3-4	Appelez-nous	-
12	WP74003976		Washer   (Replaces: 702592)	1			$ 6.47
13	712184		Eliminator, Smoke (lower)	1	Appelez-nous	-
14	Y702632		Shield, Vent	1	Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
16	Y701728		Support, Rack	1	Appelez-nous	-
17	Y702339		Rack, Oven	1	Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 708810)	1		Immediately	$ 52.04
19	4396923		Rack, Broil Pan   (Replaces: Y708811)	1		Immediately	$ 52.04
20	701744		Screw	1	Appelez-nous	-
21	Y701541		Clip, Bulb	1	Appelez-nous	-
22	701741		Spacer, Oven	1	Appelez-nous	-
23	715294		Nut, Tee	1	Appelez-nous	-
23	702282		Insulation-sides,top,bottom	1	Appelez-nous	-
23	702283		Insulation-back	1	Appelez-nous	-
24	W10124350		Not Required Part Or See Note	4	Appelez-nous	-
24	712282		Light Lens (kit)	1	Appelez-nous	-
25	W10124350		Not Required Part Or See Note	1-3	Appelez-nous	-
25	704142		Receptacle, Holder	4	Appelez-nous	-
26	Y704145		Receptacle, Snap-in	4	Appelez-nous	-
26	W10124350		Not Required Part Or See Note	1-3	Appelez-nous	-
27	Y704143		Lens, Light	4	Appelez-nous	-
27	W10124350		Not Required Part Or See Note	1-3	Appelez-nous	-
28	W10124350		Not Required Part Or See Note	1-3	Appelez-nous	-
28	Y704144		Retainer, Lens	4	Appelez-nous	-
