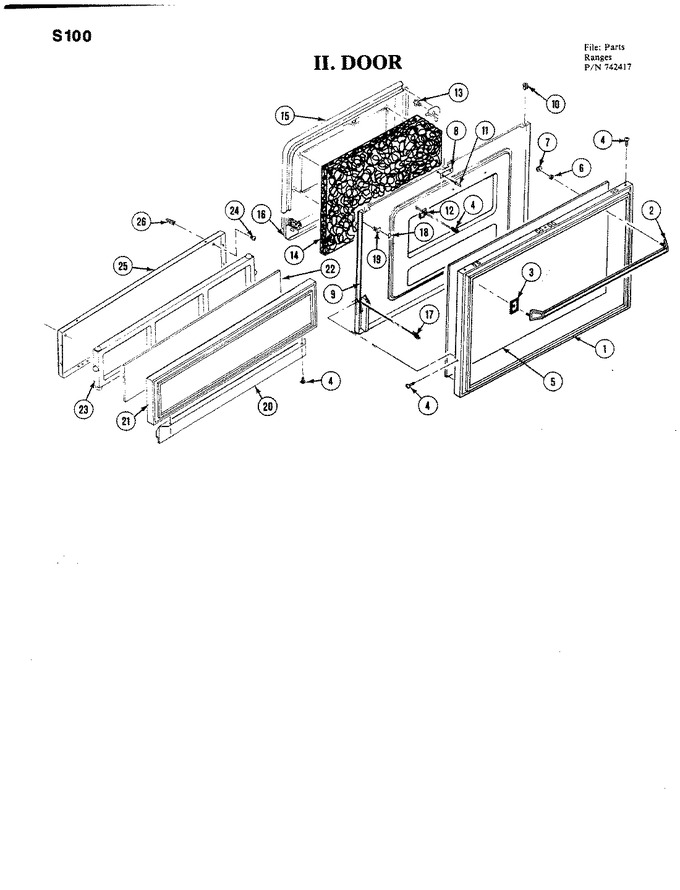

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Assembly
02 - Body
03 - Body
04 - Control Panel
05 - Door
06 - Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 00703427 | Frame, Oven Door (Replaces: 703427) | 1 |
|
$ 1,006.22 | ||||
| 2 | Y703429 | Handle, Door | 1 |
|
- | ||||
| 3 | Y703430 | Pad, Mounting | 1 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 5 | 703617 | Glass, Screened | 1 |
|
- | ||||
| 6 | Y703433 | Bushing | 1 |
|
- | ||||
| 7 | Y703431 | Palnut | 1 |
|
- | ||||
| 8 | 703275 | Plate, Latch (lower) | 1 |
|
- | ||||
| 9 | 712189 | Liner, Oven Door Weld | 1 |
|
- | ||||
| 10 | 702657 | Nut, Push-in | 1 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 12 | 703289 | Stand-off Bracket (lower) | 1 |
|
- | ||||
| 13 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 14 | DE81-07248A | Insulation, Bottom (Replaces: 703612) | 1 |
|
- | ||||
| 15 | WPY702338 | Seal (lwr) (Replaces: Y703611) | 1 |
|
Immediately | $ 172.53 | |||
| 16 | 712224 | Plug | 1 |
|
- | ||||
| 17 | Y700834 | Clip | 1 |
|
- | ||||
| 18 | W10840861 | Pad, Spacer (Replaces: Y702688) | 1 |
|
$ 8.89 | ||||
| 19 | 703613 | Spacer, Corner (lwr) | 1 |
|
- | ||||
| 20 | Y702744 | Panel, Kick | 1 |
|
- | ||||
| 21 | DE81-07204A | Frame,door (Replaces: 703434) | 1 |
|
$ 494.35 | ||||
| 22 | 703435 | Panel, Base | 1 |
|
- | ||||
| 23 | Y702896 | Spacer, Base Door | 1 |
|
- | ||||
| 24 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 25 | Y702341 | Liner, Door | 1 |
|
- | ||||
| 26 | Y702633 | Stud, Ball | 1 |
|
- |
