SELECT A DIAGRAM

01 - Blower Assembly


02 - Body


03 - Body

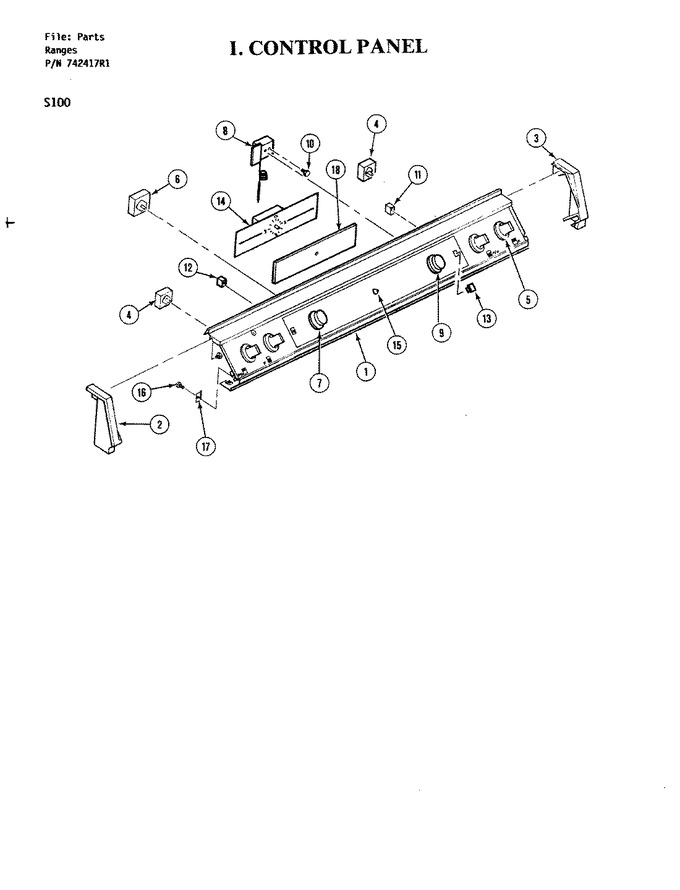

04 - Control Panel


05 - Door


06 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703447		Panel, Control	1-5	Appelez-nous	-
2	702388		Cap, End (lt)	1-5	Appelez-nous	-
3	Y702387		Cap, End (rt)	1-5	Appelez-nous	-
4	W11120791		Switch, Infinite   (Replaces: 703650)	1-5		Immediately	$ 98.55
4	703646		Wire, Orange	1-5	Appelez-nous	-
5	12200034		Knob, Switch   (Replaces: Y703661)	5			$ 95.17
5	12200034		Knob, Infinite Switch   (Replaces: Y703273)	1-4			$ 95.17
6	703451		Switch, Selector	1-5	Appelez-nous	-
7	DE81-06566A		Knob, Selector   (Replaces: 703500)	5			$ 132.40
7	703278		Knob, Selector-lower	1-4	Appelez-nous	-
8	703450		Thermostat	1-5	Appelez-nous	-
9	703279		Knob, Thermostat	1-4	Appelez-nous	-
9	DE81-06946A		Knob, Thermostat   (Replaces: 703498)	5			$ 261.98
10	71002058		Screw   (Replaces: Y702124)	1-5			$ 5.82
11	Y702394		Light, Indicator 240v	1-5	Appelez-nous	-
12	Y702393		Light, Indicator-120v	1-5	Appelez-nous	-
13	Y702351		Lens, Pilot Light	1-5	Appelez-nous	-
14	Y703638		Clock----na	1-5	Appelez-nous	-
15	Y712230		Knob, Clock	1-5	Appelez-nous	-
15	WPW10339879		Tie, Cable   (Replaces: 701678)	1-5			$ 7.11
16	Y702976		Screw, Hex	1-5	Appelez-nous	-
17	702616		Bracket, Retaining	1-5	Appelez-nous	-
18	712258		Bezel	1-5	Appelez-nous	-
18	703452		Harness, Control	1-5	Appelez-nous	-
18	712257		Lens-clock	1-5	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
