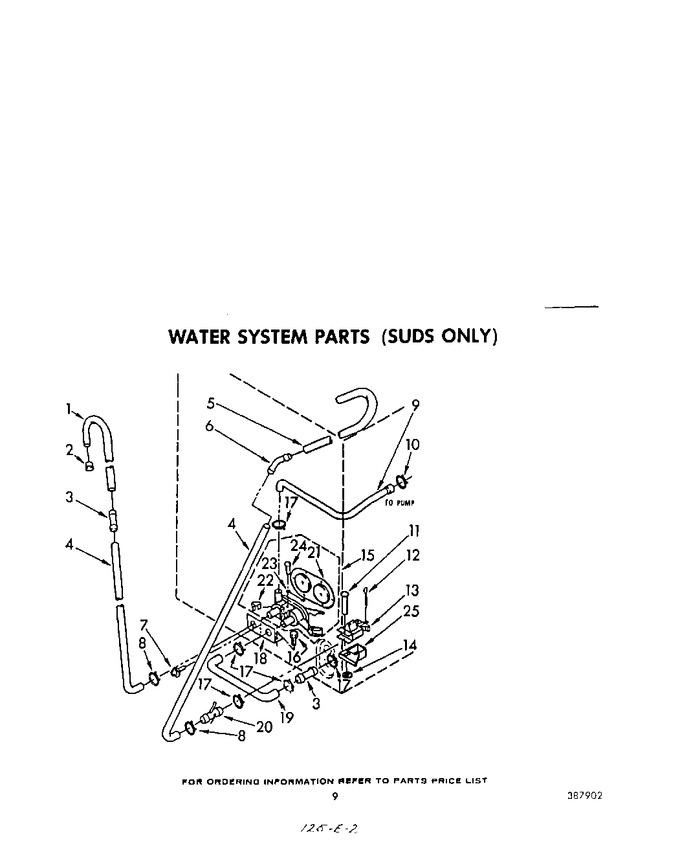

07 - Water System (suds Only)


08 - Cabinet


09 - Miscellaneous, Literature And Optional


10 - Gearcase


11 - Basket Drive And Brake


12 - Water System (non Suds Only)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	91273		Hose, Suds Discharge		Appelez-nous	-
2	352833		Strainer, Hose		Appelez-nous	-
3	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
4	96746		Hose, Outlet				$ 71.22
5	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
6	95440		Connector, Hose				$ 22.55
7	190575		Screw & Washer		Appelez-nous	-
8	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
9	357189		Hose, Pump To Two-way Valve		Appelez-nous	-
10	WP616099		Clamp, Hose   (Replaces: 272859)			Immediately	$ 7.03
11	359089		Rivet		Appelez-nous	-
12	90228		Pin, Cotter (1/8 X 3/4)		Appelez-nous	-
13	DE81-09913A		Solenoid, Two-way Valve   (Replaces: 86798)				$ 33.80
14	WP90296		Clip, Push-on   (Replaces: 90296)				$ 7.07
15	359634		Valve, Two-way		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
17	WP285655		Clamp, Hose   (Replaces: 370446)			Immediately	$ 7.55
18	357191		Bracket		Appelez-nous	-
19	97784		Hose, Two-way Valve To Connector		Appelez-nous	-
20	357334		Connector, Hose		Appelez-nous	-
21	358317		Diaphragm		Appelez-nous	-
22	96262		Clip, Retainer (8)		Appelez-nous	-
23	358343		Strap, Ground		Appelez-nous	-
24	WP90767		Screw, 8a X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.04
25	359096		Shield, Two-way Valve		Appelez-nous	-
