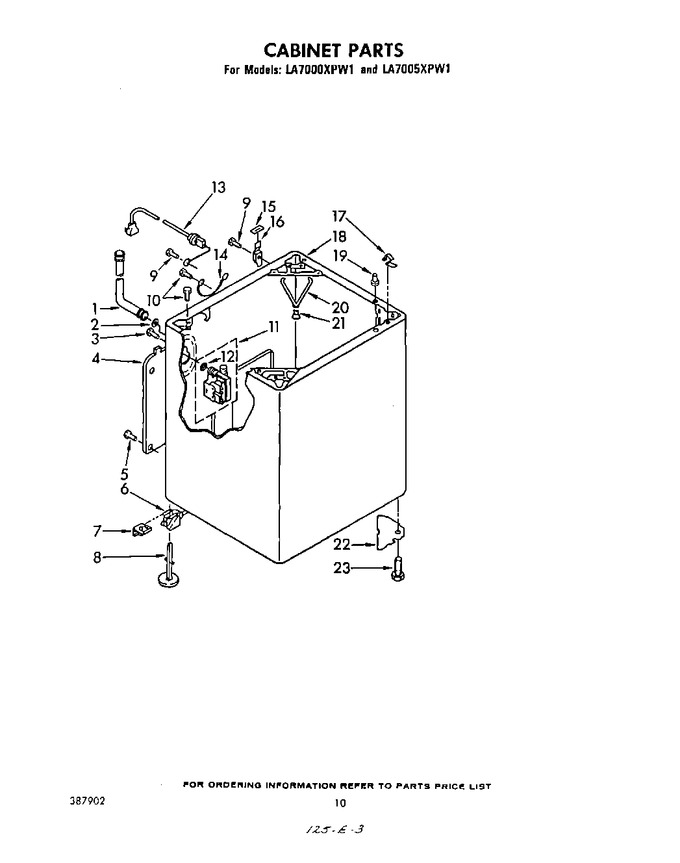

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP89503 Hose, Inlet (2)   (Replaces: 81339) In-Stock Immediately $ 21.68

2 WP16123 Washer, Rubber (4)   (Replaces: 16123) Special Order $ 6.93

3 WP3390631 Screw, No. 10-16 X 3/8   (Replaces: 62863) Special Order $ 7.04

4 85279 Panel, Rear (non-suds) Appelez-nous -
4 357335 Panel, Rear (suds) Appelez-nous -
5 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 7.07

6 359059 Leveling Link Assembly Appelez-nous -
7 WP359364 Clip, Leveling Mechanism (2)   (Replaces: 359364) In-Stock Immediately $ 7.06

8 WP358594 Foot, Rear (2)   (Replaces: 358594) Special Order $ 12.24

9 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

10 WP681414 Screw, 10-16 X 1/2   (Replaces: 359262) In-Stock Immediately $ 7.07

11 358971 Valve, Mixing (alt.) (serviced Only As Complete Assemblies) Appelez-nous -
11 358277 Valve, Mixing (alt.) In-Stock Immediately $ 78.87

11 660749 Valve, Mixing Appelez-nous -
12 WP96160 Screen, Filter   (Replaces: 96160) Special Order $ 10.54

13 92667 Cord, Power (120 Volt) Appelez-nous -
14 364089 Wire, Ground Appelez-nous -
15 18849 Pad, Hinge (2) Special Order $ 18.13

16 18775 Hinge, R.h. Appelez-nous -
16 92657 Hinge, L.h. Appelez-nous -
17 WP18776 Lock, Front Top (2)   (Replaces: 18776) In-Stock Immediately $ 11.41

18 384793 Cabinet (white) Appelez-nous -
18 384794 Cabinet (almond) Appelez-nous -
18 384797 Cabinet (golden Harvest) Appelez-nous -
18 386477 Cabinet (toast) Appelez-nous -
18 386478 Cabinet (platinum) Appelez-nous -
19 98669 Locator, Top (2) Special Order $ 12.03

20 358336 Spring, Snubber   (Replaces: 357977) In-Stock Immediately $ 4.80

21 358336 Snubber In-Stock Immediately $ 4.80

22 356459 Plate, Gusset (2) Appelez-nous -
23 WP367594 Foot, Front (2)   (Replaces: 367594) In-Stock Immediately $ 18.46


    View Diagram in Separate Window     Print Icon   Print Part List
