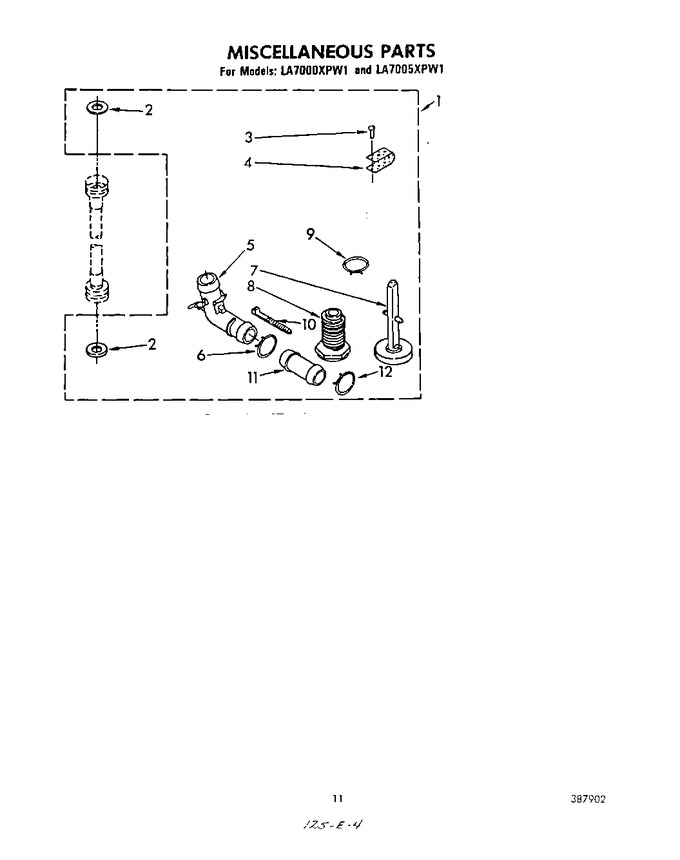

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 375975 | Miscellaneous Parts Bag (suds) |
|
- | |||||
| 1 | 387200 | Miscellaneous Parts Bag (non-suds) |
|
- | |||||
| 2 | WP16123 | Washer, Inlet Hose (4) (1-1/16 X 5/8) (4) (Replaces: 16123) |
|
$ 6.93 | |||||
| 3 | 132848 | Screw, Ground (10-24 X 1) |
|
- | |||||
| 4 | 22965 | Strap, Ground |
|
- | |||||
| 5 | 95440 | Connector, Hose (suds) |
|
$ 22.55 | |||||
| 6 | WP356138 | Clamp, Hose (2) (suds) (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 7 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 8 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 18.46 | ||||
| 9 | WP356138 | Clamp, Hose (2) (non-suds) (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 10 | WPW10339879 | Tie, Cable (Replaces: 386566) |
|
$ 7.11 | |||||
| 11 | WP16272 | Connector, Hose (suds) (Replaces: 16272) |
|
$ 7.04 | |||||
| 12 | WP285655 | Clamp, Hose (suds) (Replaces: 370446) |
|
Immediately | $ 7.55 | ||||
| 76 | LIT677818 | Lit677813 (belt Drive) (dryer) |
|
- | |||||
| 76 | 677821 | Lit677813 (belt Drive) (compactor) (Replaces: LIT677821) |
|
$ 31.51 | |||||
| 76 | LIT677967 | Lit677813 (belt Drive) (dishwasher) |
|
- | |||||
| 285365 | Toast |
|
- | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| LIT385238 | Guide, Laundry |
|
- | ||||||
| LIT387930 | Sheet, Installation Instructions (non-suds) |
|
- | ||||||
| LIT383980 | Sheet, Installation Instructions (suds) |
|
- | ||||||
| LIT386894 | Guide, Use & Care |
|
- | ||||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | ||||||
| LIT386197 | Label, Energy Guide (non-$flsuds) |
|
- | ||||||
| LIT386220 | Label, Energy Guide (suds) |
|
- | ||||||
| LIT387902 | List, Repair Parts |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 261890 | Golden Harvest |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 285368 | Platinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- |
