SELECT A DIAGRAM

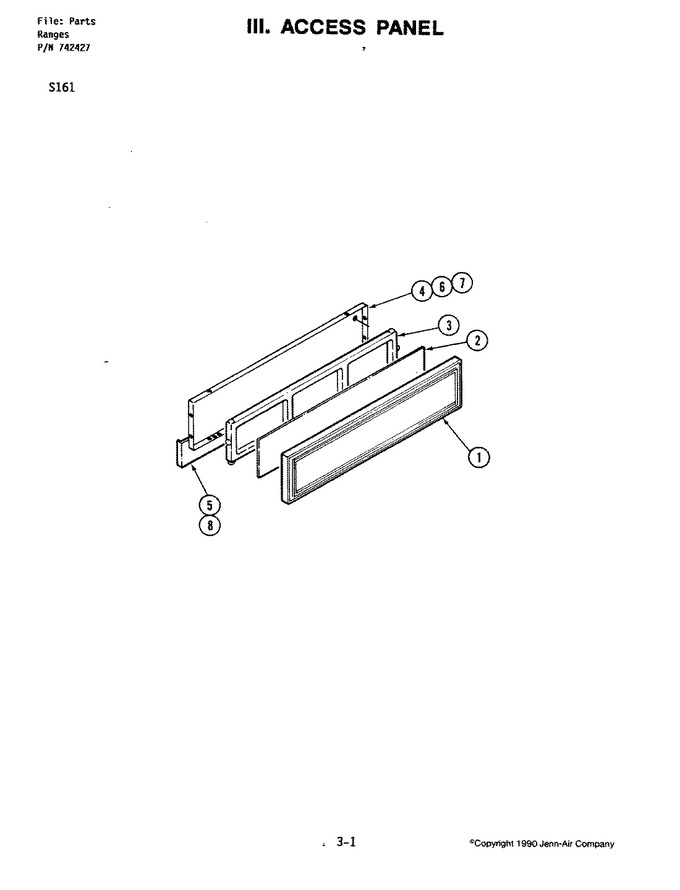

01 - Access Panel
02 - Blower Motor
03 - Blower Motor
04 - Blower Motor (convection)
05 - Body
06 - Control Panel
07 - Door
08 - Internal Controls
09 - Liner
10 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702340 | Frame, Door | 1 |
|
- | ||||
| 2 | Y702342 | Panel, Base | 1 |
|
- | ||||
| 3 | Y702896 | Spacer, Base Door | 1 |
|
- | ||||
| 4 | Y702341 | Liner, Door | 1 |
|
- | ||||
| 5 | Y702744 | Panel, Kick | 1 |
|
- | ||||
| 6 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 7 | Y702633 | Stud, Ball | 1 |
|
- | ||||
| 8 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 |
