SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor


03 - Blower Motor


04 - Blower Motor (convection)


05 - Body


06 - Control Panel


07 - Door


08 - Internal Controls


09 - Liner


10 - Top

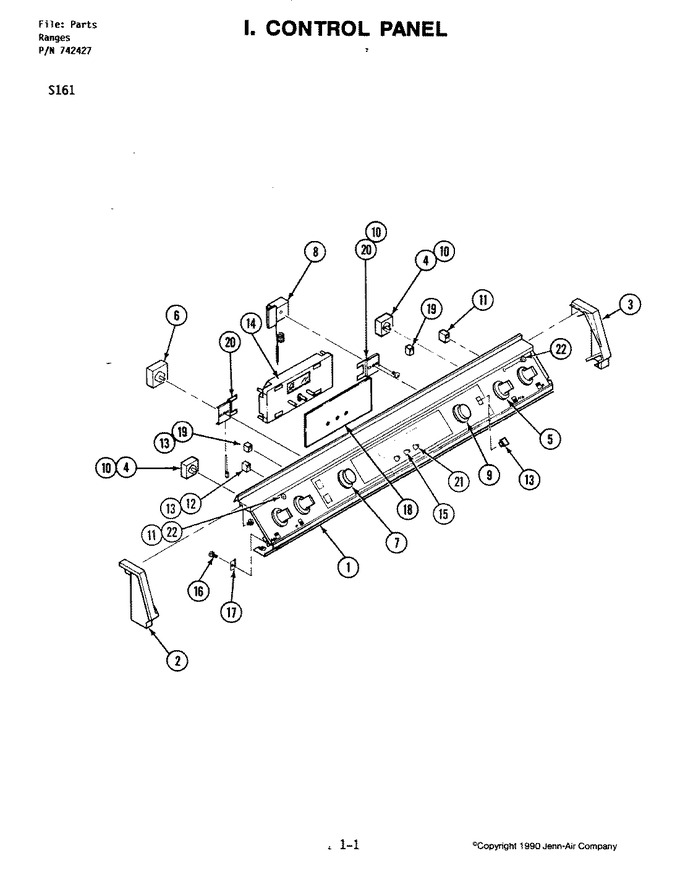

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703666		Panel, Control	1	Appelez-nous	-
2	702388		Cap, End (lt)	1	Appelez-nous	-
3	Y702387		Cap, End (rt)	1	Appelez-nous	-
4	W11120791		Switch, Infinite   (Replaces: 703650)	1		Immediately	$ 98.55
5	12200034		Knob, Switch   (Replaces: Y703661)	1			$ 95.17
6	Y703673		Switch, Selector	1	Appelez-nous	-
7	DE81-06568A		Knob, Selector-upper   (Replaces: 703502)	1			$ 163.11
8	Y703674		Thermostat	1			$ 133.57
9	WPY703499		Knob, Thermostat   (Replaces: Y703499)	1			$ 43.52
10	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
11	Y702614		Light, Surface Indicator 120v	1	Appelez-nous	-
12	Y702393		Light, Indicator-120v	1	Appelez-nous	-
13	Y702351		Lens, Pilot Light	1	Appelez-nous	-
14	Y703708		Clock	1	Appelez-nous	-
15	WPW10339879		Tie, Cable   (Replaces: 701678)	1			$ 7.11
15	WP7711P492-60		Knob, Clock   (Replaces: 7711P492-60)	1			$ 12.13
16	Y702976		Screw, Hex	1	Appelez-nous	-
17	702616		Bracket, Retaining	1	Appelez-nous	-
18	704608		Lens, Timer (wht)	1			$ 209.07
19	Y702394		Light, Indicator 240v	1	Appelez-nous	-
20	703667		Bracket, Clock	1	Appelez-nous	-
21	703714		Knob, Clock (sm)	1	Appelez-nous	-
22	DE81-09159A		Wire, Wire   (Replaces: 703370)	1			$ 313.88
22	703749		Wire, Orange	1	Appelez-nous	-
22	703523		Wire, Orange (right)	1	Appelez-nous	-
22	Y702615		Lens, Pilot Light	1	Appelez-nous	-
22	703716		Harness,wire (supply)	1	Appelez-nous	-
22	703715		Harness, Wire (ctrl)	1	Appelez-nous	-
22	703751		Wire, Brown	1	Appelez-nous	-
22	703752		Wire, Resistor Therm.	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
