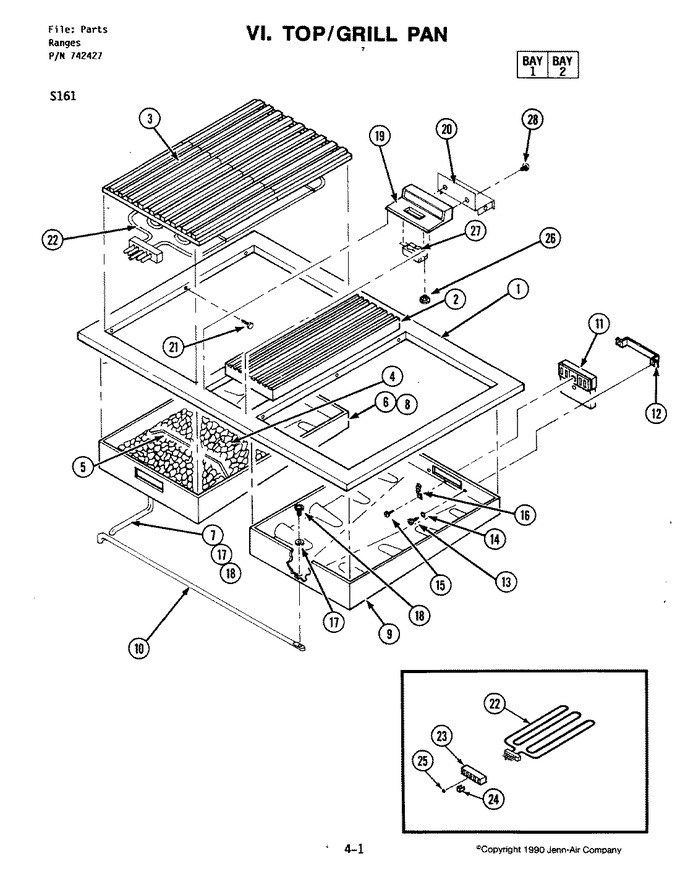

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701853		Top	1	Appelez-nous	-
2	702568		Grill, Air	1	Appelez-nous	-
3	707886		Grate	1	Appelez-nous	-
4	708929		Plate, Rock	1	Appelez-nous	-
5	700819		Support, Rock Plate	1			$ 71.81
6	Y712197		Wire, Brown	1	Appelez-nous	-
6	701955		Pan, Grill (lt)	1	Appelez-nous	-
6	Y712200		Wire, Yellow	1	Appelez-nous	-
6	Y712227		Wire, Blue	1	Appelez-nous	-
6	Y712203		Wire, Violet	1	Appelez-nous	-
7	Y702463		Tube, Drain (left)	1	Appelez-nous	-
8	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
9	Y701956		Pan, Grill (rt)	1	Appelez-nous	-
9	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	1			$ 87.19
9	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	1			$ 117.23
9	Y712199		Wire, Brown	1	Appelez-nous	-
9	Y712227		Wire, Blue	1	Appelez-nous	-
10	Y702327		Tube, Drain (right)	1	Appelez-nous	-
11	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
12	Y702698		Bracket	1	Appelez-nous	-
13	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
14	Y707664		Washer	1	Appelez-nous	-
15	WP489128		Screw   (Replaces: Y707341)	1			$ 9.79
16	74004835		Clip   (Replaces: Y702699)	1			$ 11.37
17	702747		Washer, Teflon	1	Appelez-nous	-
18	702748		Nut, Drain Tube	1	Appelez-nous	-
19	715381		Escutcheon	1	Appelez-nous	-
20	702581		Bracket, Filler	1	Appelez-nous	-
21	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
22	Y700531		Element Complete, 240v	1	Appelez-nous	-
23	WPY708730		Block, Terminal   (Replaces: Y708730)	1		Immediately	$ 87.44
24	Y700450		Clip, Shunt	1			$ 9.51
25	Y708862		Nut, Speed	1			$ 13.08
26	Y705023		Palnut	1	Appelez-nous	-
27	Y702546		Switch, Rocker	1	Appelez-nous	-
28	703003		Screw	1	Appelez-nous	-
