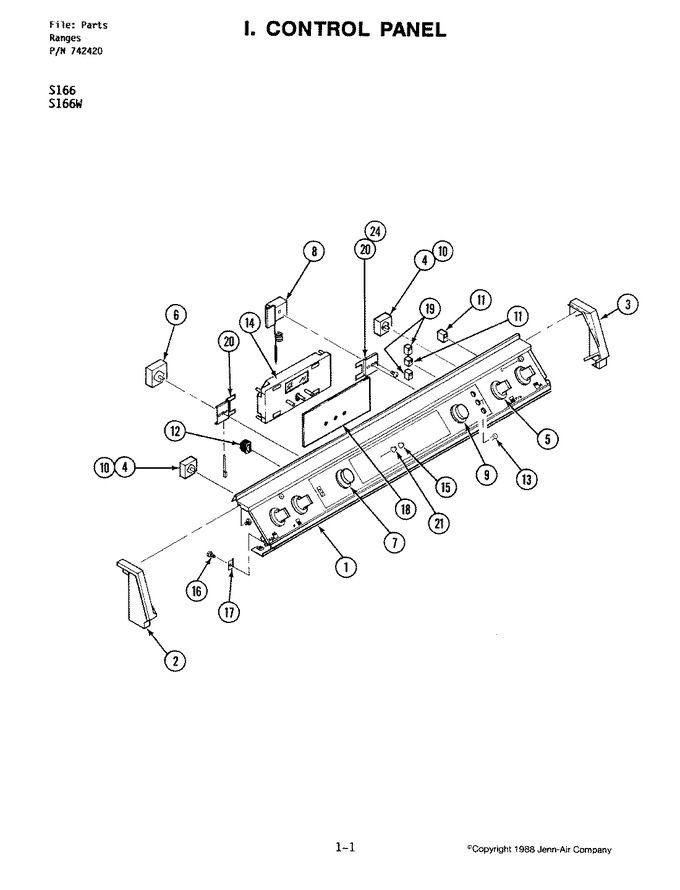

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703961 | Panel, Control (blk) | 1 |
|
- | ||||
| 2 | 702388 | Cap, End (lt) | 1 |
|
- | ||||
| 3 | Y702387 | Cap, End (rt) | 1 |
|
- | ||||
| 4 | 703523 | Wire, Orange (right) | 1 |
|
- | ||||
| 4 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 5 | 703900 | Knob, Infinite (blk) | 1 |
|
- | ||||
| 6 | 703749 | Wire, Orange | 1 |
|
- | ||||
| 6 | Y703673 | Switch, Selector | 1 |
|
- | ||||
| 7 | 703901 | Knob, Selector Switch (blk) | 1 |
|
- | ||||
| 8 | Y703674 | Thermostat | 1 |
|
$ 133.57 | ||||
| 8 | 704243 | Wire, Brown | 1 |
|
- | ||||
| 9 | 703917 | Knob, Thermostat | 1 |
|
$ 21.34 | ||||
| 10 | 71002058 | Screw (Replaces: Y702124) | 1 |
|
$ 5.82 | ||||
| 11 | Y702614 | Light, Surface Indicator 120v | 1 |
|
- | ||||
| 12 | Y704311 | Switch, Oven Light (blk) | 1 |
|
- | ||||
| 13 | Y702615 | Lens, Pilot Light | 1 |
|
- | ||||
| 14 | Y703708 | Clock | 1 |
|
- | ||||
| 15 | WPW10339879 | Tie, Cable (Replaces: 701678) | 1 |
|
$ 7.11 | ||||
| 15 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 1 |
|
$ 12.13 | ||||
| 16 | Y702976 | Screw, Hex | 1 |
|
- | ||||
| 17 | 702616 | Bracket, Retaining | 1 |
|
- | ||||
| 18 | 703668 | Lens, Clock (blk) | 1 |
|
- | ||||
| 18 | 712258 | Bezel | 1 |
|
- | ||||
| 19 | Y704222 | Light, Oven Pilot (240v) | 1 |
|
- | ||||
| 19 | 704245 | Harness, Control | 1 |
|
- | ||||
| 19 | 703716 | Harness,wire (supply) | 1 |
|
- | ||||
| 20 | 703667 | Bracket, Clock | 1 |
|
- | ||||
| 21 | 704244 | Wire, Blue | 1 |
|
- | ||||
| 21 | 703752 | Wire, Resistor Therm. | 1 |
|
- | ||||
| 21 | WP7711P492-60 | Knob, Clock (sm/blk) (Replaces: Y704239) | 1 |
|
$ 12.13 |
