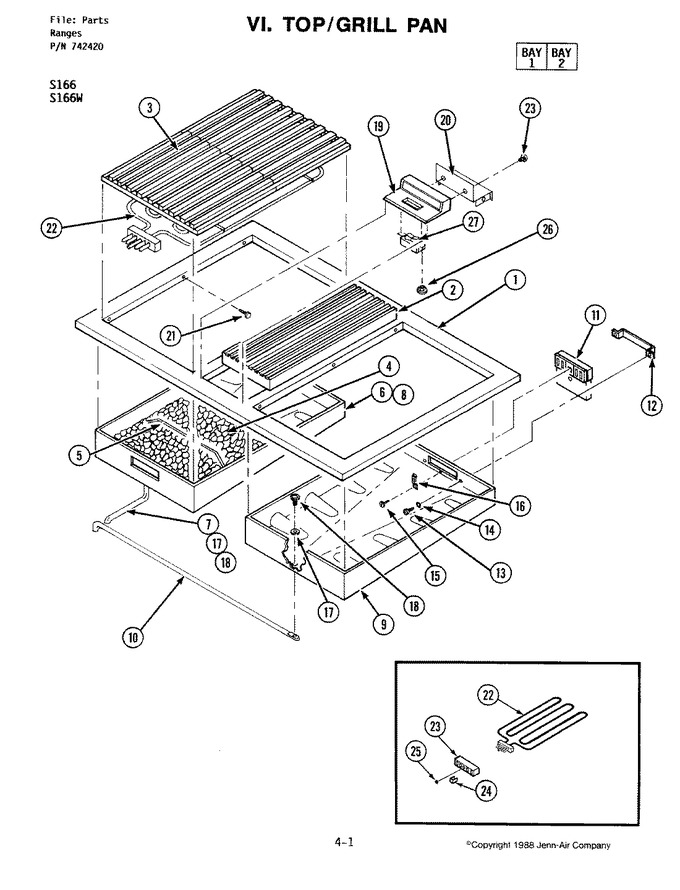

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701853 | Top | 1 |
|
- | ||||
| 2 | Y704228 | Grill, Air Blk | 1 |
|
- | ||||
| 3 | 703905 | Grate, Grill | 1 |
|
- | ||||
| 4 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 5 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 6 | Y712197 | Wire, Brown | 1 |
|
- | ||||
| 6 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 6 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 6 | Y712227 | Wire, Blue | 1 |
|
- | ||||
| 6 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 7 | Y702463 | Tube, Drain (left) | 1 |
|
- | ||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 9 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) | 1 |
|
$ 87.19 | ||||
| 9 | Y712227 | Wire, Blue | 1 |
|
- | ||||
| 9 | Y701956 | Pan, Grill (rt) | 1 |
|
- | ||||
| 9 | Y712199 | Wire, Brown | 1 |
|
- | ||||
| 9 | WP5708M007-60 | Wire, Yellow (Replaces: Y712201) | 1 |
|
$ 117.23 | ||||
| 10 | Y702327 | Tube, Drain (right) | 1 |
|
- | ||||
| 11 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 1 |
|
Immediately | $ 96.61 | |||
| 12 | Y702698 | Bracket | 1 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 14 | Y707664 | Washer | 1 |
|
- | ||||
| 15 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 16 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 17 | 702747 | Washer, Teflon | 1 |
|
- | ||||
| 18 | 702748 | Nut, Drain Tube | 1 |
|
- | ||||
| 19 | Y704232 | Escutcheon (blk) | 1 |
|
- | ||||
| 20 | Y704233 | Bracket, Filler | 1 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 22 | WP5700M426-60 | Element Complete, 240v (Replaces: Y712430) | 1 |
|
$ 382.26 | ||||
| 23 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 24 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 25 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 26 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 27 | Y704221 | Switch, Fan (black) | 1 |
|
- |
