SELECT A DIAGRAM

01 - Body


02 - Door/drawer


03 - Door/drawer (serial Prefix 11)


04 - Oven


05 - Top Assembly


06 - Wiring Information

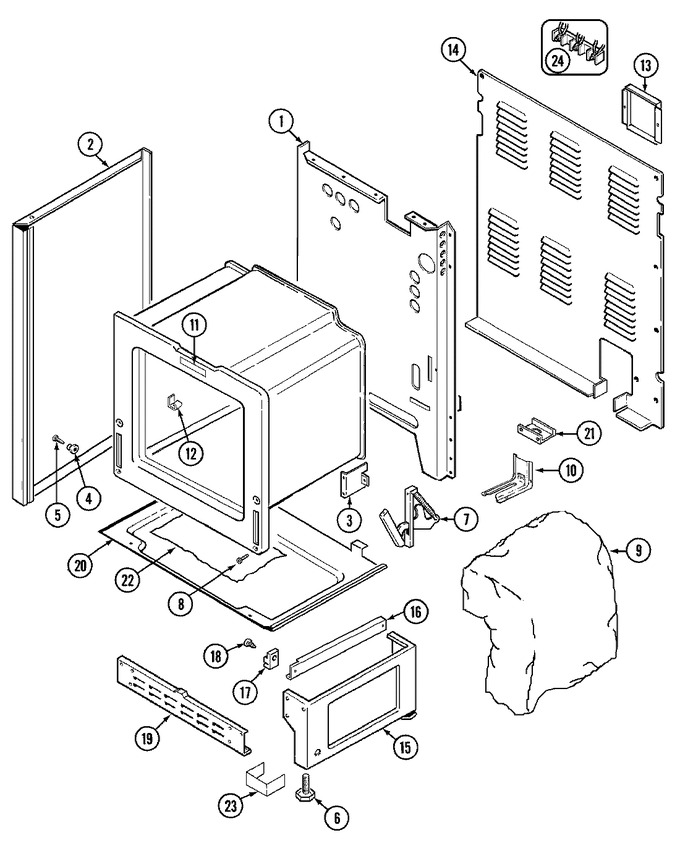

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74001582		Back, Main	10	Appelez-nous	-
1	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
2	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
2	2618F106-70		Panel, Side (lt-blk)	10	Appelez-nous	-
2	2618F107-70		Panel, Side (rt-blk)	10	Appelez-nous	-
3	3807F400-51		Support,oven Rear	10	Appelez-nous	-
3	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
4	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
5	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
6	W11665456		Leg, Leveling   (Replaces: 74002373)	22		Immediately	$ 25.30
6	7101P316-60		Leg, Leveling	10	Appelez-nous	-
7	7106P055-60		Hinge	10			$ 52.22
8	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
9	4820F001-59		Strap, Retainer	10	Appelez-nous	-
9	4804F044-60		Insulation, Oven Wrap	10	Appelez-nous	-
9	4804F039-60		Insulation, Oven Back	10	Appelez-nous	-
10	WP7101P485-60		Screw   (Replaces: 7101P344-60)	10			$ 26.33
10	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	10		Immediately	$ 4.69
11	8114P335-60		Cover, Lock Slot	10	Appelez-nous	-
12	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	10		Immediately	$ 11.07
13	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
13	4005F427-51		Cover, Access	10	Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
14	4005F356-51		Cover, Main Back	10	Appelez-nous	-
15	4020W015-80		Pedestal, Sides	10	Appelez-nous	-
15	74003003		Pedestal, Side	22	Appelez-nous	-
16	3406F028-51		Runner, Drawer	10	Appelez-nous	-
17	8004P033-60		Support, Drawer	10	Appelez-nous	-
17	74002312		Support, Drawer	19			$ 27.09
18	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
19	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
19	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
20	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
20	3804F112-51		Retainer, Insulation	10	Appelez-nous	-
21	3605F174-51		Plate, Conduit Tubing	10	Appelez-nous	-
21	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
22	8312P058-60		Foil, Insulation Retainer	10	Appelez-nous	-
23	4005F420-80		Cover, Leveling Leg	10	Appelez-nous	-
24	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	10		Immediately	$ 31.65
