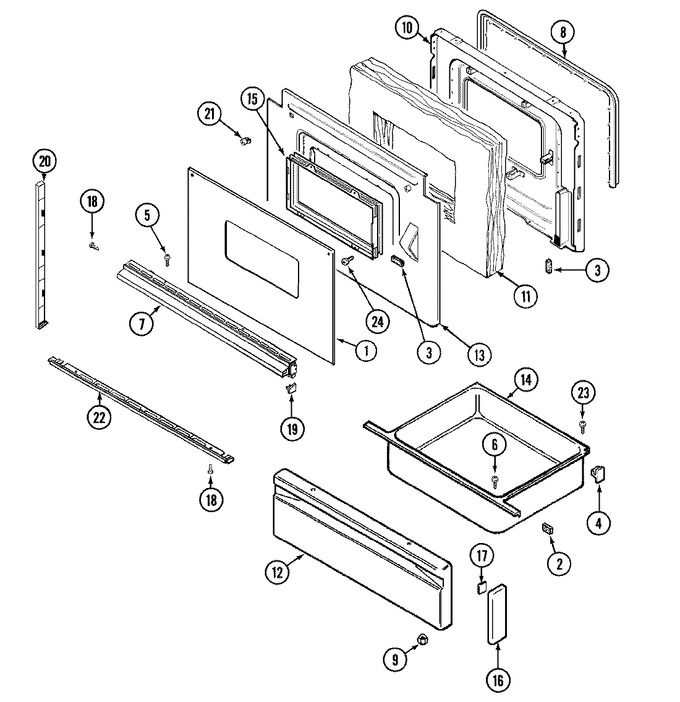

SELECT A DIAGRAM

01 - Body


02 - Door/drawer


03 - Door/drawer (serial Prefix 11)


04 - Oven


05 - Top Assembly


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)	10	Appelez-nous	-
2	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	10			$ 11.95
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	8004P026-60		Support, Drawer (rear)	10			$ 9.29
5	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
6	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
7	7701P103-60		Handle, Door (blk)	10	Appelez-nous	-
8	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
9	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
10	2402W203-19		Lining, Door	10	Appelez-nous	-
10	7103P136-60		Nut, Snap	10	Appelez-nous	-
10	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
10	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
11	4804F050-60		Insulation, Door 2``	10	Appelez-nous	-
12	2416F038-65		Panel, Drawer (blk)	10	Appelez-nous	-
13	3601F236-51		Baffle, Door	10	Appelez-nous	-
14	3405F014-80		Drawer, Storage	10	Appelez-nous	-
15	7907P016-60		Window Asy.	10	Appelez-nous	-
15	3805F002-34		Clamp, Window Assy.	10	Appelez-nous	-
16	7744P068-60		End Cap (blk)	10	Appelez-nous	-
17	8270P098-60		Tape	10			$ 5.02
18	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
19	7744P076-60		End Cap (lt)	10	Appelez-nous	-
19	7744P075-60		End Cap (rt)	10	Appelez-nous	-
20	8270P093-60		Tape, End Cap	10	Appelez-nous	-
20	7744P055-60		End Cap, Oven Door (blk)	10	Appelez-nous	-
21	7103P045-60		Nut, Nylon	10	Appelez-nous	-
22	7744P105-60		Trim, Bottom (blk)----na	10	Appelez-nous	-
23	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
24	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
