SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Door/drawer (serial Prefix 11)
04 - Oven
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

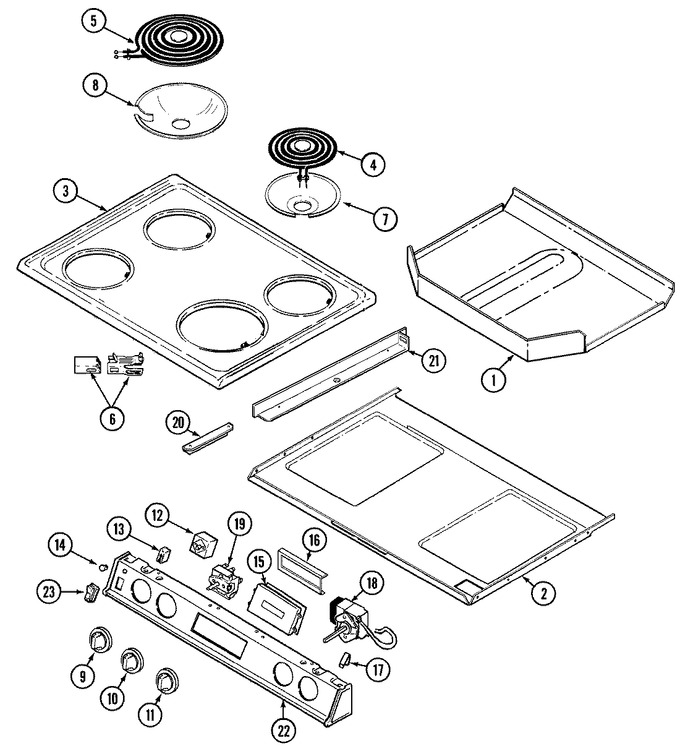

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74001549 | Shield, Wire | 10 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 7111P002-60 | Clamp, Wire 3/4 | 10 |
|
- | ||||
| 2 | 4005F397-51 | Cover | 10 |
|
- | ||||
| 2 | 4011F230-80 | Box, Burner | 10 |
|
- | ||||
| 3 | 2002W106-30 | Top, Main (stls) | 10 |
|
- | ||||
| 3 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 10 |
|
$ 6.47 | ||||
| 4 | WP660532 | Element (small) (Replaces: Y04000032) | 10 |
|
Immediately | $ 36.90 | |||
| 4 | WPW10259868 | Element Kit, 6`` (Replaces: 12500116) | 12 |
|
Immediately | $ 112.28 | |||
| 4 | WPW10259868 | Element, Surface (6``) (Replaces: 74001776) | 15 |
|
Immediately | $ 112.28 | |||
| 5 | WP3191454 | Element, Surface 8``x5t,chr (Replaces: Y04000031) | 10 |
|
$ 163.63 | ||||
| 5 | WP12001560 | Element, Surface (8``) (Replaces: 74001774) | 15 |
|
$ 172.17 | ||||
| 5 | WP12001560 | Element Kit, 8`` (Replaces: 12500115) | 12 |
|
$ 172.17 | ||||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 7725P048-60) | 10 |
|
Immediately | $ 12.05 | |||
| 7 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 14 |
|
Immediately | $ 12.05 | |||
| 8 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 14 |
|
Immediately | $ 15.56 | |||
| 8 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 7725P047-60) | 10 |
|
Immediately | $ 15.56 | |||
| 9 | WP7737P030-60 | Knob, Inf. Switch (Replaces: 7737P033-60) | 10 |
|
$ 17.81 | ||||
| 10 | 7739P041-60 | Knob, Selector | 10 |
|
- | ||||
| 11 | 7735P043-60 | Knob, Thermostat Electric | 10 |
|
- | ||||
| 12 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 12 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 13 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 15 | 7602P119-60 | Clock (blk) | 10 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | W11233072 | Screw (Replaces: 7101P147-60) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | 3801F332-45 | Bracket | 10 |
|
- | ||||
| 17 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 18 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 18 | 7404P072-60 | Thermostat | 10 |
|
- | ||||
| 19 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 10 |
|
$ 131.41 | ||||
| 19 | WP7403P255-60 | Switch, Selector (Replaces: 74002929) | 21 |
|
$ 131.41 | ||||
| 19 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 20 | 3801F327-51 | Bracket | 10 |
|
- | ||||
| 21 | 3604F214-51 | Shield, Heat (rt) | 10 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 21 | 3604F213-51 | Shield, Heat (lt) | 10 |
|
- | ||||
| 22 | 7722P127-60 | Panel, Upper Front | 10 |
|
- | ||||
| 22 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 23 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 24 | WPW10339879 | Strap, Tube (Replaces: 8019P003-60) | 10 |
|
$ 7.11 | ||||
| 25 | 5195D094-60 | Harness, Control Panel | 10 |
|
- | ||||
| 25 | 5175D064-60 | Harness, To Cooktop | 10 |
|
- | ||||
| 26 | 8113P023-60 | Manual, Use & Care | 10 |
|
- | ||||
| 27 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
