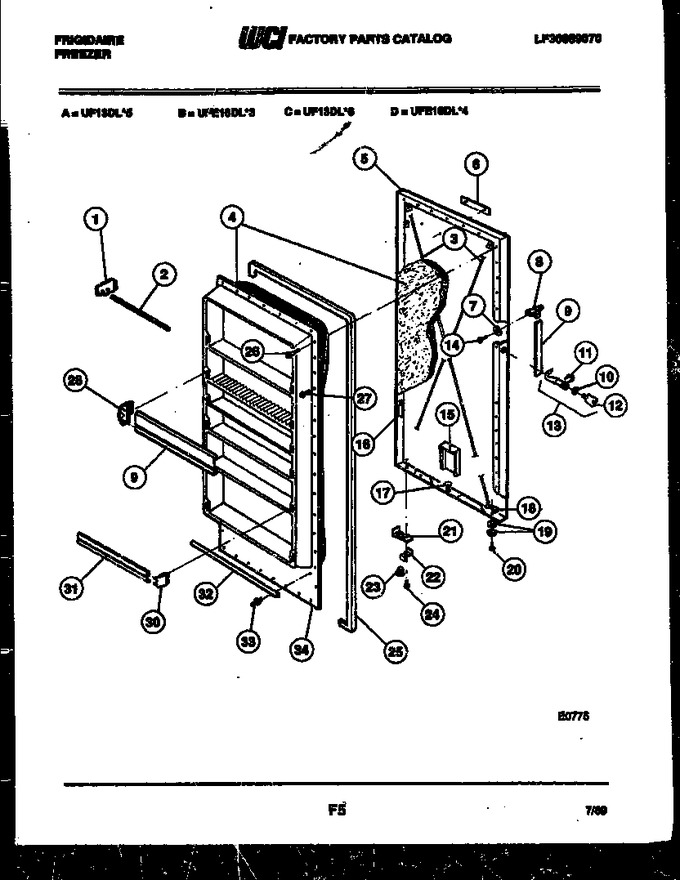

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - Compressor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 09948966 | Insulation |
|
- | |||||
| 5 | 08016589 | Panel-door |
|
- | |||||
| 6 | 08027409 | Nameplate |
|
- | |||||
| 7 | 08016593 | Washer (2) |
|
- | |||||
| 8 | 08016581 | Support (2) |
|
- | |||||
| 9 | 08016585 | Grip Handle |
|
- | |||||
| 10 | 09948648 | Washer |
|
- | |||||
| 11 | 09948787 | Clip |
|
- | |||||
| 12 | 06599905 | Key |
|
- | |||||
| 13 | 06599899 | Lock Complete |
|
- | |||||
| 14 | 08016582 | Screw (2) |
|
- | |||||
| 15 | 06599537 | Vent |
|
- | |||||
| 16 | 09956920 | Door Drier Kit |
|
- | |||||
| 17 | 09950074 | Vent (2) |
|
- | |||||
| 18 | 05879859 | Bracket |
|
- | |||||
| 19 | 09950839 | Washer (2) |
|
- | |||||
| 20 | 05879860 | Screw |
|
- | |||||
| 21 | 5300091170 | Bracket |
|
- | |||||
| 22 | 08016354 | Stop-door |
|
$ 36.07 | |||||
| 23 | 06593364 | Bearing Top |
|
- | |||||
| 24 | 08005520 | Screw-door Stop |
|
- | |||||
| 25 | 08016361 | Gasket Seal |
|
- | |||||
| 26 | 08009384 | Screw (24) |
|
- | |||||
| 28 | 08015539 | Insert Rh |
|
- | |||||
| 29 | 08016385 | Front-wide |
|
- | |||||
| 30 | 08015541 | Insert Rh (4) |
|
- | |||||
| 31 | 08016383 | Front-narrow (4) |
|
- | |||||
| 32 | 08016356 | Gasket |
|
- | |||||
| 34 | 08013199 | Panel-inner |
|
- | |||||
| 23A | 08016490 | Bearing-bottom |
|
- | |||||
| 28A | 08015540 | Insert Lh |
|
- | |||||
| 30A | 08015542 | Insert Lh (4) |
|
- | |||||
| 6A | 08037842 | Insert |
|
- |
