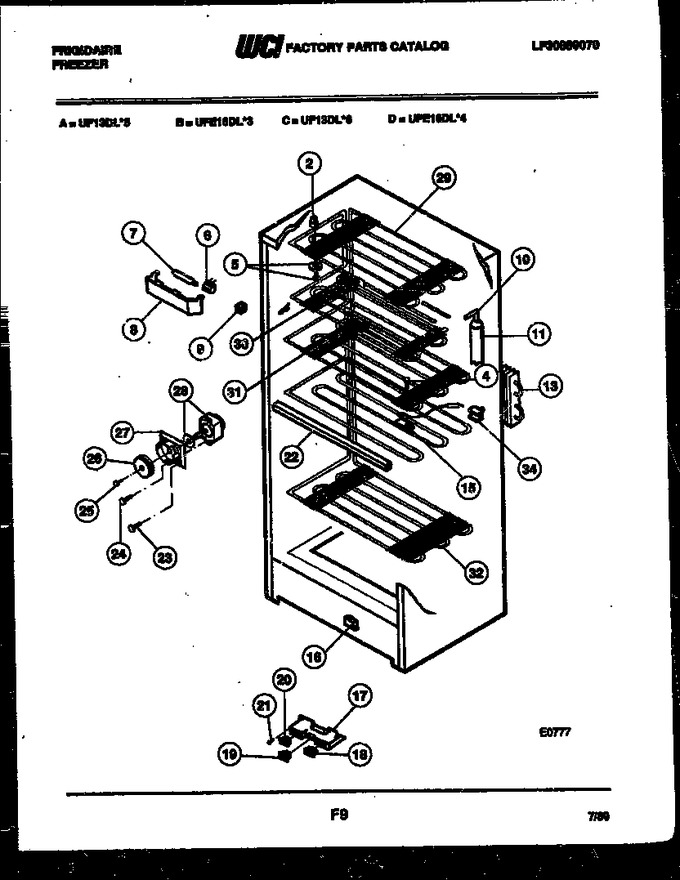

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - Compressor Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	09949962		Support Lh (3)		Appelez-nous	-
2	06593408		Spacer (2)		Appelez-nous	-
4	06593417		Screw		Appelez-nous	-
5	05878516		Spacer		Appelez-nous	-
6	08013446		Screw (3)		Appelez-nous	-
7	03091423		Bulb 25 Watts		Appelez-nous	-
8	02601025		Light Shield		Appelez-nous	-
9	09948781		Clip-wiring		Appelez-nous	-
10	08010753		Heat Exchanger		Appelez-nous	-
11	09950837		Insulation		Appelez-nous	-
12	09950852		Insulation		Appelez-nous	-
13	08010754		Condenser (not Orginal Equipment. Service Replacement On		Appelez-nous	-
15	06594662		Clamp		Appelez-nous	-
16	08016367		Buzzer,alarm		Appelez-nous	-
17	08016369		Bracket		Appelez-nous	-
18	08016374		Signal Light Red		Appelez-nous	-
19	08016366		Switch		Appelez-nous	-
20	08002706		Signal Light Amber		Appelez-nous	-
21	08016594		Screw		Appelez-nous	-
22	08037933		Trim-shelf Front (3)		Appelez-nous	-
24	08003539		Screw (2)		Appelez-nous	-
25	09950853		Screw, Knob		Appelez-nous	-
26	08016364		Knob		Appelez-nous	-
27	08016370		Housing		Appelez-nous	-
28	08005527		Shield		Appelez-nous	-
29	F129766		Top Shelf		Appelez-nous	-
30	F300092		First Shelf		Appelez-nous	-
31	08016362		Second Shelf		Appelez-nous	-
32	F300093		Bottom Shelf		Appelez-nous	-
33	08013446		Screw (3)		Appelez-nous	-
34	09949960		Support, Rear		Appelez-nous	-
35	5308016351		Control Temp				$ 180.40
13A	08016375		Harness-alarm (non-illustrated)		Appelez-nous	-
1A	297001500		Support Rh (3)   (Replaces: 08037928)				$ 18.08
2A	08037929		Spacer Rear (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
