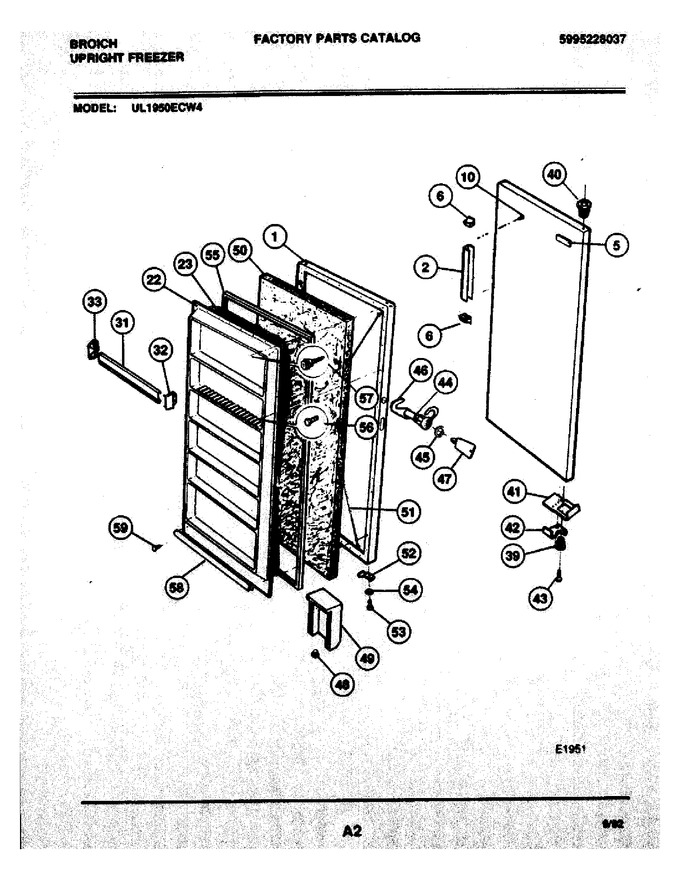

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3200946		Panel Door, White		Appelez-nous	-
2	3206048		Handle Door		Appelez-nous	-
5	3206049		Nameplate		Appelez-nous	-
6	3206043		Handle End Cap-top		Appelez-nous	-
6	3206044		End Cap,white ,bottom		Appelez-nous	-
10	5303161233		Screw Handle		Appelez-nous	-
22	216012701		Pane-inner (white)		Appelez-nous	-
23	09950831		Insulation Dike		Appelez-nous	-
31	3206054		Shelf Front Wide (5)		Appelez-nous	-
32	5309948970		End Cap, Rh, Wide (5)		Appelez-nous	-
33	09948971		End Cap-lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
44	5303925107		Lock-complete		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	216013800		Lock Hook		Appelez-nous	-
47	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
48	5309950074		Valve, Breather				$ 12.48
49	5300128421		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket		Appelez-nous	-
54	09950839		Washer, Bracket		Appelez-nous	-
55	3206256		Gasket, Door, White				$ 248.43
56	216858001		Screw Door Panel (22)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5308016356		Gasket		Appelez-nous	-
59	5303091422		Rivet Gasket		Appelez-nous	-
