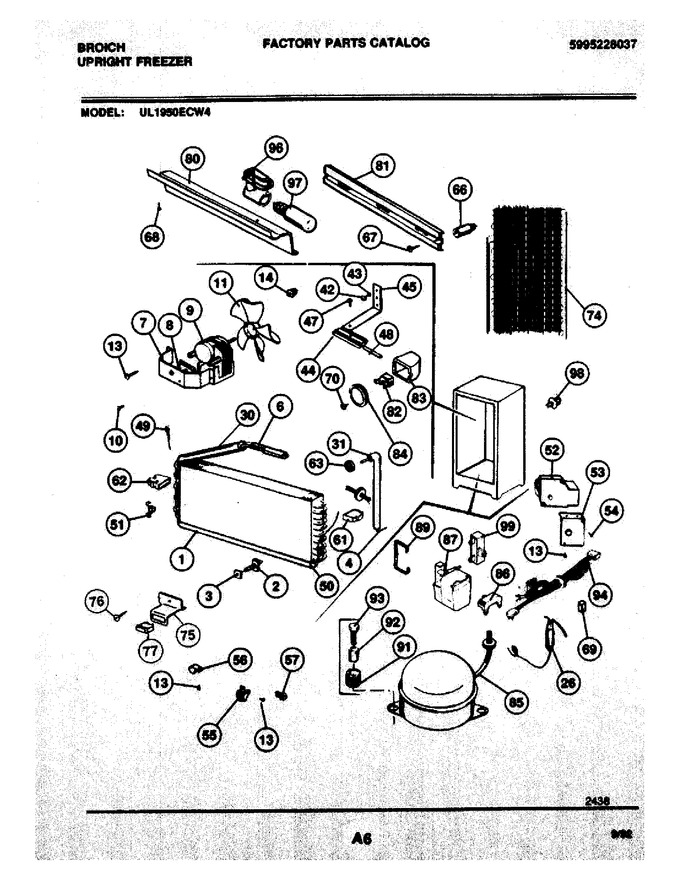

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205656		Evaporator		Appelez-nous	-
2	06599544		Support, Evaporator		Appelez-nous	-
3	08013198		Spacer Evaporator		Appelez-nous	-
3	06599546		Spacer-support, Evaporator		Appelez-nous	-
4	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
4	5303272332		Heat Exchanger		Appelez-nous	-
6	08005187		Sleeve Evap Tubing		Appelez-nous	-
7	08013207		Bracket Fan Motor				$ 12.92
8	5300164002		Gasket		Appelez-nous	-
9	3205519		Fan Motor		Appelez-nous	-
10	06594542		Screw		Appelez-nous	-
11	3205520		Blade, Fan		Appelez-nous	-
13	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
14	09948978		Insert Nut		Appelez-nous	-
26	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
30	06594625		Insulation-heat Exchanger		Appelez-nous	-
31	09948773		Insulation				$ 12.60
42	08009412		Screw		Appelez-nous	-
43	5300095480		Washer Bracket		Appelez-nous	-
44	05878562		Clamp		Appelez-nous	-
45	06594601		Bracket, Control				$ 17.64
47	5300052943		Screw, Clamp				$ 5.30
48	5308037932		Sleeve, Capillary Tube		Appelez-nous	-
49	5303016814		Switch, Termination		Appelez-nous	-
50	5306599535		Heater, Defrost		Appelez-nous	-
51	06599536		Clip, Heater		Appelez-nous	-
52	5308037967		Timer		Appelez-nous	-
53	08016580		Bracket		Appelez-nous	-
54	08037849		Screw, Timer				$ 8.98
55	5303017718		Clamp Strain Relief		Appelez-nous	-
56	06599553		Clip, Wires		Appelez-nous	-
57	05878556		Clip, Compressor Wire		Appelez-nous	-
61	3017674		Air Seal-rh		Appelez-nous	-
62	3200707		Air Seal, Lh		Appelez-nous	-
63	06594629		Grommet		Appelez-nous	-
66	08000456		Spacer Baffle Plate (2)		Appelez-nous	-
67	216858001		Screw Baffle Plate (2)   (Replaces: 5303161215)			Immediately	$ 10.85
68	5303283898		Screw, Shield		Appelez-nous	-
69	08037401		Retainer Harness				$ 2.85
70	09950853		Screw, Knob		Appelez-nous	-
74	09950610		Clip		Appelez-nous	-
74	5300083897		Condenser				$ 538.37
75	216009101		Bracket, Signal Light		Appelez-nous	-
76	08037851		Screw-bracket				$ 3.57
77	06594648		Signal Light, Amber		Appelez-nous	-
80	216135000		Shield		Appelez-nous	-
81	5303209880		Baffle		Appelez-nous	-
82	216022900		Control Temp.		Appelez-nous	-
83	5306599543		Cover, Control		Appelez-nous	-
84	216008802		Knob-control		Appelez-nous	-
84	5303208663		Plug Control		Appelez-nous	-
85	5303917192		Compressor		Appelez-nous	-
86	3200957		Overload		Appelez-nous	-
87	216008900		Relay		Appelez-nous	-
89	215012000		Clip Cover				$ 2.63
91	216498900		Grommet (4)   (Replaces: 5308002681)				$ 13.01
92	5306594529		Sleeve (3)				$ 10.34
93	08002679		Screw (3)		Appelez-nous	-
94	216088900		Harness-electrical		Appelez-nous	-
96	5300136117		Socket				$ 52.46
97	5303091423		Bulb		Appelez-nous	-
98	5308037962		Light Switch		Appelez-nous	-
99	5303916391		Capacitor-run		Appelez-nous	-
