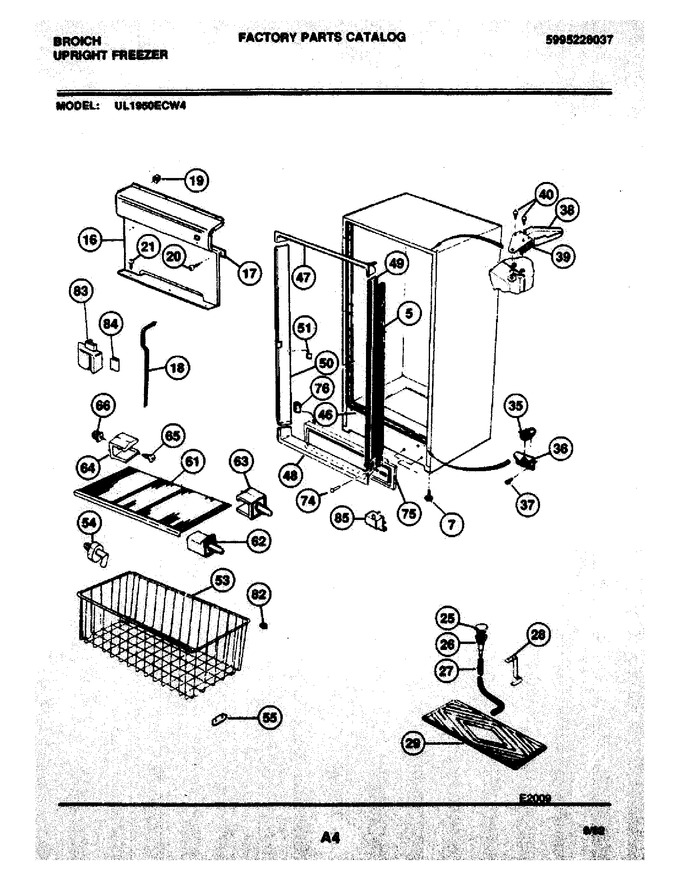

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	09950831		Insulation		Appelez-nous	-
7	5303205540		Screw-leveling (4)		Appelez-nous	-
16	06599550		Panel-evaporator		Appelez-nous	-
17	06599547		Spacer		Appelez-nous	-
18	5306599551		Gasket-panel		Appelez-nous	-
19	09948978		Insert Nut (6)		Appelez-nous	-
20	216858001		Screw-panel To Liner   (Replaces: 5303161215)			Immediately	$ 10.85
21	5303161233		Screw-panel To Evaporator		Appelez-nous	-
25	530803740		Screen-drain		Appelez-nous	-
26	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
27	08037416		Hose		Appelez-nous	-
28	06594637		Clip		Appelez-nous	-
29	5308016387		Defrost Drain Pan		Appelez-nous	-
35	5303210424		Ramp, Door Closer		Appelez-nous	-
36	5303210383		Hinge, Bottom		Appelez-nous	-
37	154518001		Screw-hinge Bottom   (Replaces: 5303205738)				$ 10.54
38	5303212912		Cover, Hinge-white		Appelez-nous	-
39	5303212935		Hinge, Top		Appelez-nous	-
40	5303212937		Screw-top Hinge		Appelez-nous	-
40	08037937		Spacer-top Breaker (2)		Appelez-nous	-
46	06594680		Clip, Breaker		Appelez-nous	-
47	06594561		Breaker, Top		Appelez-nous	-
48	06594562		Breaker, Bottom		Appelez-nous	-
49	5303280424		Breaker-hinge Side		Appelez-nous	-
50	216014300		Breaker-lock Side		Appelez-nous	-
53	3206050		Basket		Appelez-nous	-
54	09948791		Stop, Basket		Appelez-nous	-
55	08009560		Glide Basket (4)				$ 35.25
55	5303288196		Spacer, Basket (4)		Appelez-nous	-
61	3206051		Shelf-upper		Appelez-nous	-
61	3206052		Shelf-lower		Appelez-nous	-
62	5306594706		Support, Front, Rh (5)		Appelez-nous	-
62	5306594707		Support, Front, Lh (5)		Appelez-nous	-
63	5306594584		Support, Shelf (8)				$ 19.80
64	5306594585		Support, Rear (2)		Appelez-nous	-
65	08005520		Screw-door Stop		Appelez-nous	-
66	06594537		Insert, Nut		Appelez-nous	-
74	5309950066		Pin		Appelez-nous	-
75	3206053		Toe Grille		Appelez-nous	-
76	5300118003		Bumper Base Trim (2)		Appelez-nous	-
82	5305878546		Bumper Basket (2)				$ 7.23
83	216013600		Support, Lock		Appelez-nous	-
84	216013700		Clip Lock		Appelez-nous	-
