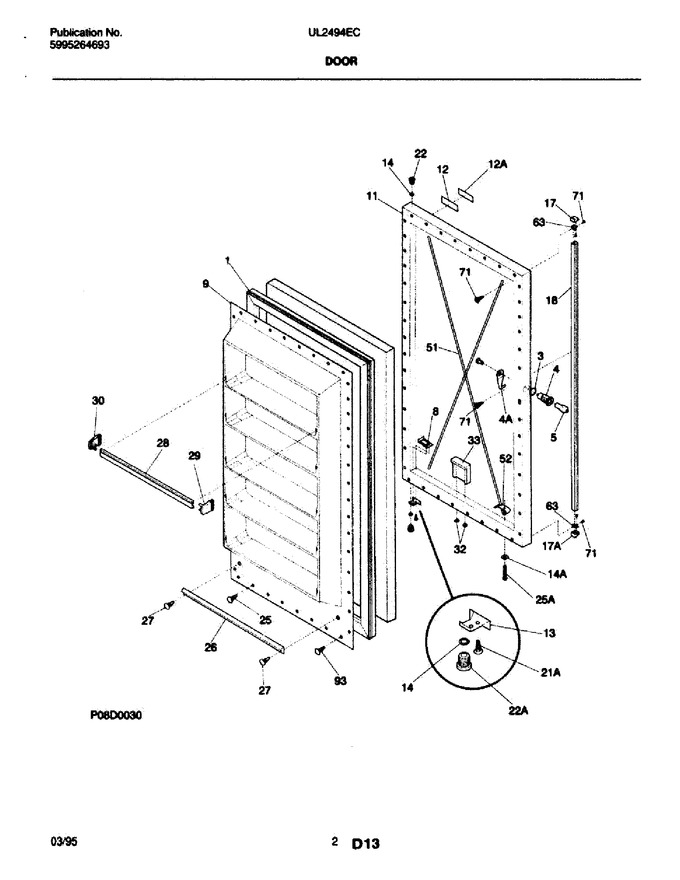

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206261		Gasket Door				$ 254.52
3	5300114366		Washer		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
8	5300091170		Reinforcement, Door Stop		Appelez-nous	-
9	216048807		Panel, Inner Door, White		Appelez-nous	-
11	5303925293		Panel-outer Door, White		Appelez-nous	-
12	5303297073		Bezel,nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303301500		Washer, Sealing		Appelez-nous	-
17	3206043		End Cap, White		Appelez-nous	-
18	3206060		Handle,white		Appelez-nous	-
22	5303925197		Bearing				$ 23.73
25	216022800		Screw		Appelez-nous	-
26	5308016356		Gasket, Secondary		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
28	216273900		Rack-shelf, Wide, White				$ 27.25
29	216340000		End Cap, Wide, White, Rh		Appelez-nous	-
30	216340100		End Cap, Wide, White, Lh		Appelez-nous	-
32	5309950074		Breather-air Duct, Door				$ 12.48
33	5303212700		Air Duct		Appelez-nous	-
51	08037986		Wire, Door Adjustmnt		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
63	5300119930		Retainer Handle		Appelez-nous	-
71	5303302714		Screw		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
12A	5303297032		Insert-bezel, 12a		Appelez-nous	-
14A	5303307087		Washer		Appelez-nous	-
17A	3206044		End Cap,white ,bottom		Appelez-nous	-
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	5303210403		Bearing		Appelez-nous	-
25A	216365400		Screw, Adj Wire		Appelez-nous	-
4A	216323600		Hook, Lock		Appelez-nous	-
