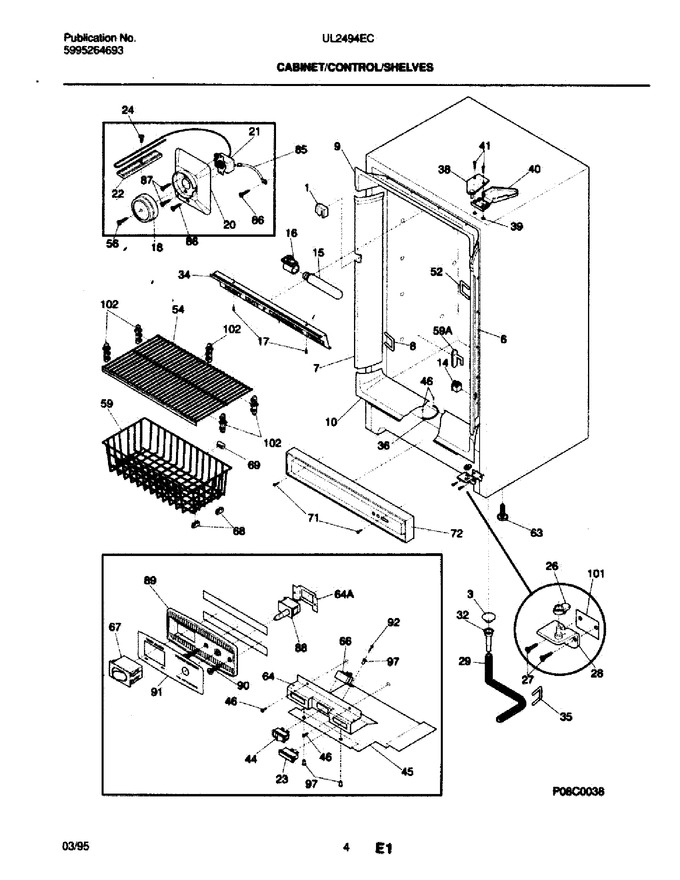

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216323100 | Support, Lock |
|
- | |||||
| 3 | 5306593887 | Plug-drain, White |
|
- | |||||
| 6 | 216107501 | Breaker, Hinge Side |
|
- | |||||
| 7 | 216107602 | Breaker-lock Side |
|
- | |||||
| 8 | 216328000 | Clip,u ,lock |
|
- | |||||
| 9 | 216085900 | Breaker, Top |
|
- | |||||
| 10 | 216085800 | Breaker, Bottom |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216222700) |
|
Immediately | $ 73.06 | ||||
| 16 | 5300136117 | Socket, Light/lamp |
|
$ 52.46 | |||||
| 17 | 5303283898 | Screw, Th Type Ab, 6-20 X 3/8, Shield-light |
|
- | |||||
| 18 | 216008602 | Knob-temp Control |
|
- | |||||
| 20 | 5303288184 | Cover-control Housing |
|
- | |||||
| 21 | 216150400 | Control-temperature |
|
- | |||||
| 22 | 08037931 | Clamp, Cap Tube, Cold Control |
|
- | |||||
| 23 | 5308002706 | Light-signal,amber |
|
$ 39.11 | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 26 | 5303210424 | Ramp, Door |
|
- | |||||
| 28 | 216247400 | Hinge-bottom |
|
- | |||||
| 29 | 5304512272 | Hose Drain (Replaces: 216313500) |
|
Immediately | $ 15.90 | ||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 13.74 | |||||
| 34 | 216312202 | Shield-light |
|
- | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 22.42 | |||||
| 36 | 06594651 | Wire, Ground |
|
- | |||||
| 38 | 5303925086 | Hinge-upper |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 40 | 5303212912 | Cover, Hinge |
|
- | |||||
| 41 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 44 | 5303017178 | Switch-rocker |
|
- | |||||
| 45 | 5303297075 | Shield-wire |
|
- | |||||
| 46 | 08037851 | Screw |
|
$ 3.57 | |||||
| 52 | 08037401 | Retainer, Wire, Breaker |
|
$ 2.85 | |||||
| 54 | 216260600 | Shelf-dry |
|
- | |||||
| 56 | 09950853 | Screw, Knob |
|
- | |||||
| 59 | 216157200 | Basket |
|
$ 102.32 | |||||
| 63 | 205363701 | Foot-adjustable |
|
- | |||||
| 64 | 08016369 | Bracket-alarm |
|
- | |||||
| 66 | 08016367 | Buzzer,alarm |
|
- | |||||
| 67 | 5303212703 | Switch-rocker,spst |
|
- | |||||
| 68 | 08009560 | Glide, Basket |
|
$ 35.25 | |||||
| 69 | 5305878546 | Bumper, Basket |
|
$ 7.23 | |||||
| 71 | 5303302714 | Screw |
|
- | |||||
| 72 | 216294416 | Grille/kickplate |
|
- | |||||
| 85 | 5300125347 | Wire-ground, Temp Control |
|
- | |||||
| 86 | 216036600 | Screw |
|
- | |||||
| 87 | 08037849 | Screw, Timer |
|
$ 8.98 | |||||
| 88 | 216380500 | Switch-defrost |
|
- | |||||
| 89 | 216206200 | Bezel-nameplate,defrost |
|
- | |||||
| 90 | 5303297123 | Screw |
|
- | |||||
| 92 | 08037852 | Screw |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 97 | 5303308288 | Rivet-blind |
|
- | |||||
| 101 | 216313300 | Plate-tapping, Hinge |
|
- | |||||
| 102 | 08016352 | Support Shelf,adjustable |
|
- | |||||
| 216269500 | Adapter, Drain |
|
$ 14.81 | ||||||
| 5303321319 | Touch-up Paint-white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | |||||
| 216502500 | Sleeve, Suction Line (Replaces: 5303207297) |
|
$ 10.85 | ||||||
| 216206600 | Harness-electrical,alarm |
|
- | ||||||
| 59A | 09948791 | Stop, Basket |
|
- | |||||
| 64A | 216009200 | Bracket-dfr Switch |
|
- |
