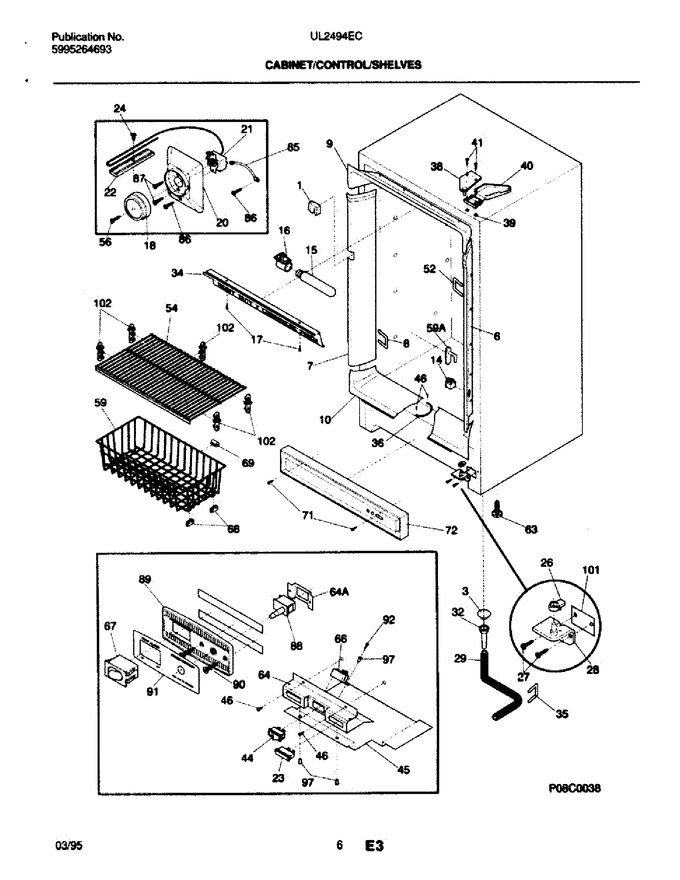

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300083897		Condenser				$ 538.37
3	216260800		Trim-shelf, Decorated, Evap		Appelez-nous	-
4	5303305677		Drier-filter			Immediately	$ 31.67
5	216359700		Harness-wire		Appelez-nous	-
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216225600		Support-rear Shelf		Appelez-nous	-
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	216346600		Compressor		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303276514		Overload				$ 64.94
32	215012000		Wire-bale				$ 2.63
34	5303298960		Spacer, Compressor		Appelez-nous	-
35	5303272328		Screw				$ 10.34
36	5304506302		Grid-top Evaporator   (Replaces: 216070900)				$ 324.59
37	216160100		Shelf-top Evaporator		Appelez-nous	-
38	216071100		Shelf-middle Evaporator		Appelez-nous	-
39	5304506302		Shelf-third Evaporator   (Replaces: 216071200)				$ 324.59
40	5304506302		Shelf-bottom Evaporator   (Replaces: 216071300)				$ 324.59
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw				$ 3.57
48	3201514		Solenoid		Appelez-nous	-
49	3201513		Clip, Valve		Appelez-nous	-
50	5303297422		Wiring Grd.-solenoid		Appelez-nous	-
51	5303210219		Valve-formed		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
	5303208622		Clip Grounding		Appelez-nous	-
15A	5308010744		Heat Exchanger Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
