New Model Search:

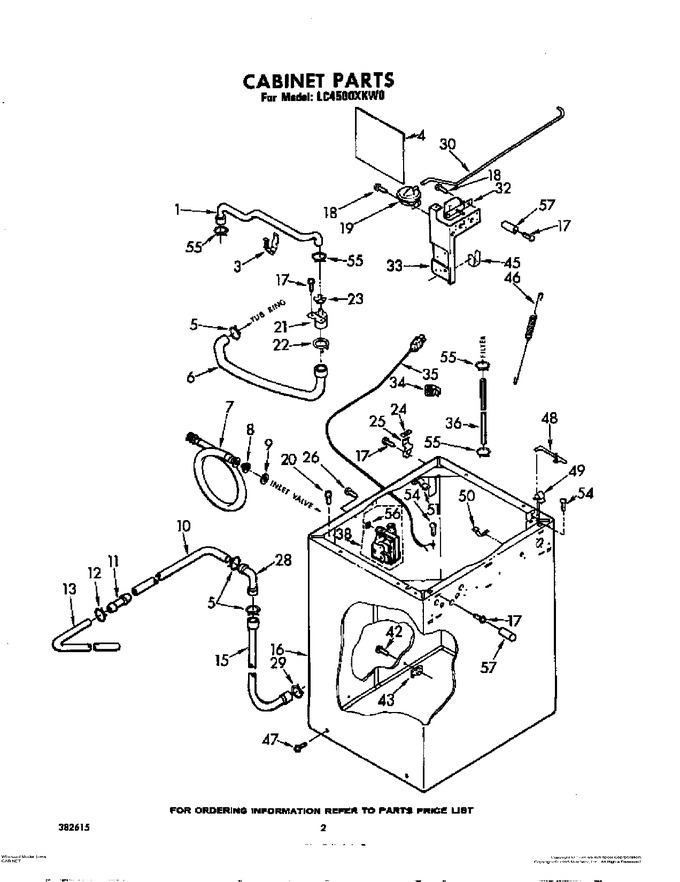

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 357048 | Hose, Water Inlet |
|
- | |||||
| 3 | 356746 | Clip, Condenser |
|
$ 19.03 | |||||
| 4 | 353885 | Barrier, Splash |
|
- | |||||
| 5 | 272855 | Clamp |
|
- | |||||
| 6 | 356314 | Hose, Water Inlet |
|
- | |||||
| 7 | WP89503 | Hose, Inlet (Replaces: 81339) |
|
Immediately | $ 21.68 | ||||
| 8 | 285452A | Screen, Filter (Replaces: 355521) |
|
Immediately | $ 8.31 | ||||
| 9 | WP16123 | Washer (Replaces: 16123) |
|
$ 6.93 | |||||
| 10 | 96746 | Hose, Outlet (Replaces: 356824) |
|
$ 71.22 | |||||
| 11 | WP16272 | Connector, Hose (Replaces: 16272) |
|
$ 7.04 | |||||
| 12 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 13 | 96745 | Hose, Drain |
|
- | |||||
| 15 | 356727 | Hose, Drain |
|
- | |||||
| 16 | 369281 | Cabinet (white) |
|
- | |||||
| 16 | 376963 | Cabinet (golden Harvest) |
|
- | |||||
| 16 | 376962 | Cabinet (new Avocado) |
|
- | |||||
| 16 | 376960 | Cabinet (almond) |
|
- | |||||
| 17 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 18 | 98520 | Screw |
|
- | |||||
| 19 | 367310 | Switch, Water Level |
|
- | |||||
| 20 | WP681414 | Screw, 10-32 X 1/2 (ground) (Replaces: 343631) |
|
Immediately | $ 7.07 | ||||
| 21 | WP356363 | Siphon Break (Replaces: 356363) |
|
Immediately | $ 7.19 | ||||
| 22 | WP616099 | Clamp, Hose (Replaces: 272861) |
|
Immediately | $ 7.03 | ||||
| 23 | WP356471 | Cap, Siphon Break (Replaces: 356471) |
|
$ 6.98 | |||||
| 24 | 18849 | Pad, Top Hinge |
|
$ 18.13 | |||||
| 25 | 356740 | Hinge, (r.h.) |
|
- | |||||
| 25 | 356606 | Hinge (l.h.) |
|
- | |||||
| 26 | WP3351614 | Screw, 10 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 28 | W11213338 | Connector, Hose (Replaces: 356739) |
|
$ 63.54 | |||||
| 29 | WP285655 | Clamp (Replaces: 353097) |
|
Immediately | $ 7.55 | ||||
| 30 | WP353244 | Hose, Pressure Switch (Replaces: 353162) |
|
Immediately | $ 53.94 | ||||
| 32 | 358934 | Switch, Rotary |
|
- | |||||
| 33 | 357174 | Bracket, Control |
|
- | |||||
| 34 | 356982 | Bracket |
|
- | |||||
| 35 | 92667 | Power, Cord |
|
- | |||||
| 36 | 356397 | Hose, Pump To Filter |
|
- | |||||
| 38 | 285805 | Valve, Water Mixing (serviced Only As A Complete Assembly) (Replaces: 358992) |
|
Immediately | $ 49.57 | ||||
| 42 | 9426223 | Screw, 10-16 X 1 |
|
- | |||||
| 43 | 357043 | Spacer, Cabinet (2) |
|
- | |||||
| 45 | 357171 | Clamp, Hose |
|
- | |||||
| 46 | 356887 | Spring, Hose Retaining |
|
- | |||||
| 47 | WP273556 | Screw, 10-12 X 5/8 (Replaces: 273556) |
|
Immediately | $ 7.04 | ||||
| 48 | 356916 | Pad, Top (l.h.) |
|
- | |||||
| 48 | 356917 | Pad, Top (r.h.) |
|
- | |||||
| 49 | 356422 | Lock, Front Top |
|
- | |||||
| 50 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 51 | 356387 | Clip, Harness |
|
- | |||||
| 54 | WP488234 | Screw (Replaces: 9412221) |
|
$ 6.07 | |||||
| 55 | WP596669 | Clamp, Hose (Replaces: 371501) |
|
Immediately | $ 7.56 | ||||
| 56 | WP96160 | Screen, Filter (Replaces: 96160) |
|
$ 10.54 | |||||
| 57 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- |
