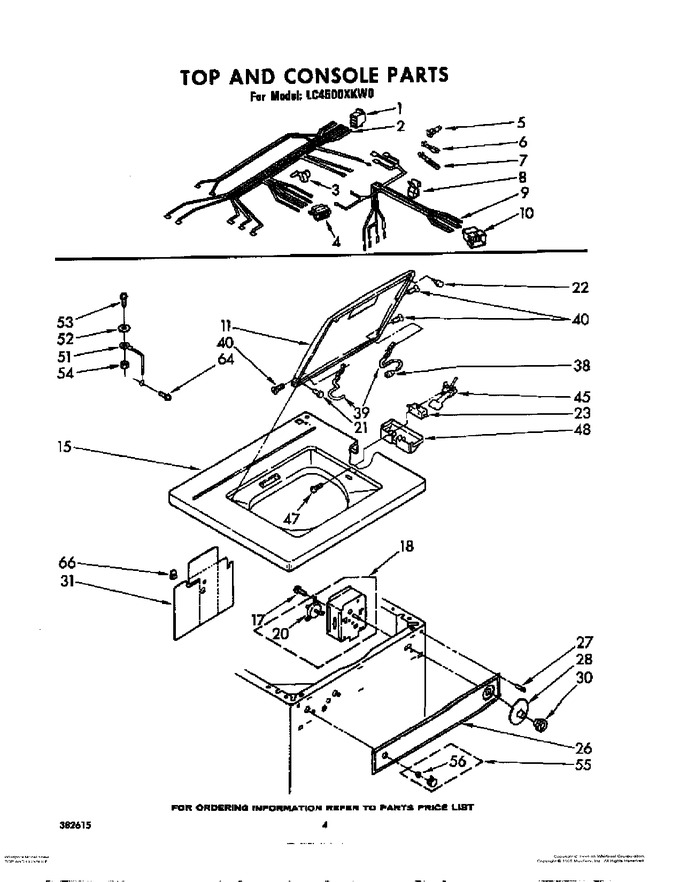

03 - Top And Console


04 - Drive


05 - Water Pump


06 - Tub And Basket


07 - Gearcase


08 - Basket Drive And Brake


09 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	94611		Plug, Terminal		Appelez-nous	-
2	380781		Harness, Upper		Appelez-nous	-
3	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
4	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
5	352088		Terminal (use W/352089)				$ 5.83
6	WP94614		Terminal (use W/94611)   (Replaces: 94614)				$ 6.90
7	94613		Terminal (use W/94612)		Appelez-nous	-
8	356327		Clip, Harness		Appelez-nous	-
9	358099		Harness, Lower		Appelez-nous	-
10	94612		Cap, Terminal		Appelez-nous	-
11	379903		Lid (golden Harvest)		Appelez-nous	-
11	376902		Lid (new Avocado)		Appelez-nous	-
11	376900		Lid (almond)		Appelez-nous	-
11	374105		Lid (white)		Appelez-nous	-
15	376913		Top (golden Harvest)		Appelez-nous	-
15	373723		Top (white)		Appelez-nous	-
15	376910		Top (almond)		Appelez-nous	-
15	376912		Top (new Avocado)		Appelez-nous	-
17	WP356418		Screw, Timer Mounting   (Replaces: 356690)				$ 7.13
18	359137		Timer, Disconnect		Appelez-nous	-
20	365941		Motor, Timer		Appelez-nous	-
21	356254		Bumper, Rear Lid		Appelez-nous	-
22	356777		Bumper, Front Lid		Appelez-nous	-
23	W10820036		Switch, Lid   (Replaces: 347207)			Immediately	$ 27.45
26	375541		Panel, Control		Appelez-nous	-
27	356388		Rivit, Plastic		Appelez-nous	-
28	359917		Dial, Timer		Appelez-nous	-
30	356500		Knob, Timer		Appelez-nous	-
31	357901		Shield, Timer		Appelez-nous	-
38	WP21258		Bearing, Hinge   (Replaces: 21258)			Immediately	$ 6.87
39	WP91770		Hinge, Lid (2)   (Replaces: 91770)				$ 24.71
40	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
45	00472059		Switch Actuator Assembly   (Replaces: 359807)				$ 1,747.53
47	354764		Screw & Washer		Appelez-nous	-
48	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
51	368715		Wire, Ground		Appelez-nous	-
52	90918		Washer		Appelez-nous	-
53	WP308544		Screw, 10-24 X 1/2   (Replaces: 274707)			Immediately	$ 6.98
54	W10080180		Nut, 10-24   (Replaces: 271166)				$ 12.13
55	370269		Control Knob Assembly		Appelez-nous	-
56	599530307		Clip Timer   (Replaces: 90015)		Appelez-nous	-
64	WP488234		Screw, 8-32 X 5/16   (Replaces: 9412221)				$ 6.07
66	356288		Clip, Push-on		Appelez-nous	-
