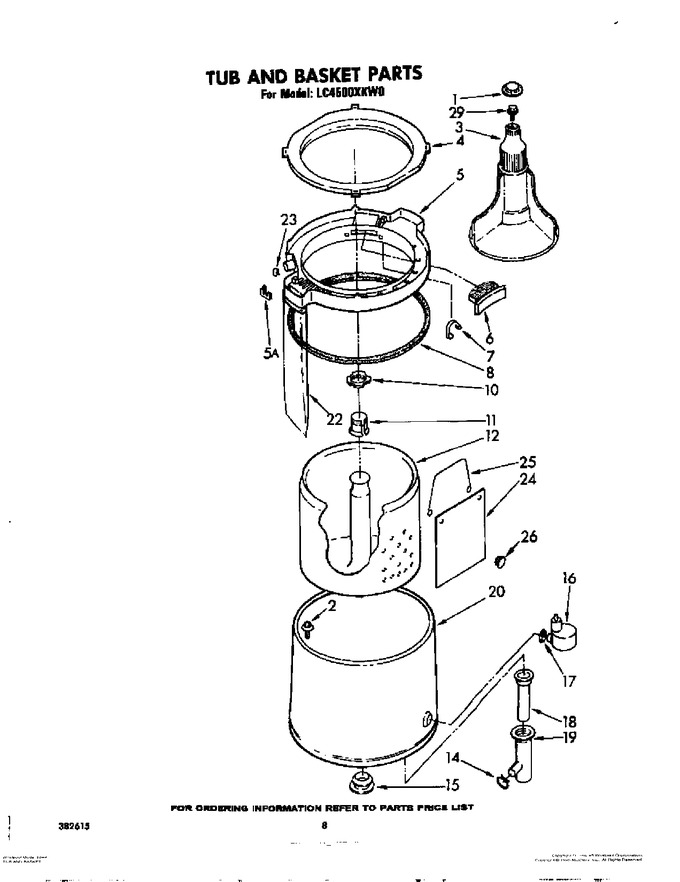

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	356381		Cap, Agitator		Appelez-nous	-
2	WP358237		Screw & Washer, Tub (5/16-24 X 3/4) (3)   (Replaces: 370571)			Immediately	$ 7.97
3	367200		Agitator		Appelez-nous	-
4	356153		Shield, Tub Ring		Appelez-nous	-
5	367315		Tub Ring		Appelez-nous	-
5	350987		Tub Ring Retainer Kit (used To Retain Tub Ring Shield If One Or More Tub Ring Tabs Are Broken. Kit C		Appelez-nous	-
6	356423		Insert, Filter		Appelez-nous	-
7	356141		Clip, Tub Ring (5)		Appelez-nous	-
8	356380		Gasket, Tub Ring		Appelez-nous	-
10	356995		Locknut		Appelez-nous	-
11	357836		Block, Basket Drive		Appelez-nous	-
12	359174		Basket Assembly		Appelez-nous	-
14	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
15	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
16	360804		Air Dome Assembly		Appelez-nous	-
17	351830		Seal				$ 5.84
18	356201		Funnel, Drain		Appelez-nous	-
19	357160		Manifold, Tub Outlet		Appelez-nous	-
20	367162		Tub		Appelez-nous	-
22	356398		Tube, Drain Off				$ 71.61
23	8577411		Clip   (Replaces: 352155)				$ 7.25
24	357623		Shield, Splash		Appelez-nous	-
25	357622		Support, Splash Shield		Appelez-nous	-
26	356288		Clip, Push-on (2)		Appelez-nous	-
29	WP358237		Screw & Washer   (Replaces: 358237)			Immediately	$ 7.97
