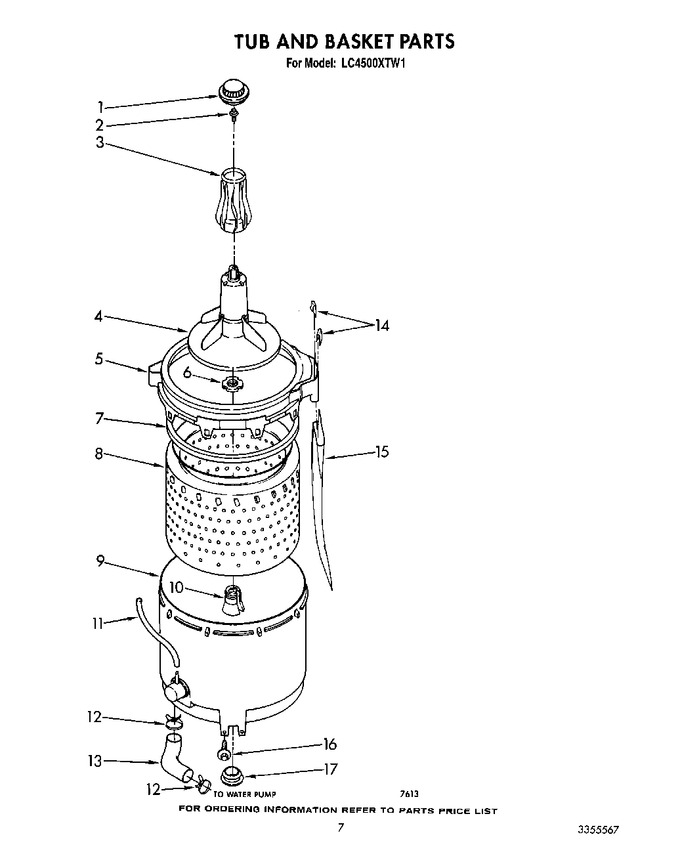

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 8.10 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 3 | WP63840 | Filter, Agitator (Replaces: 63840) |
|
Immediately | $ 157.96 | ||||
| 4 | WP3349098 | Agitator (Replaces: 3349098) |
|
Immediately | $ 156.38 | ||||
| 5 | 64175 | Tub Ring & Gasket (includes Illus. 7, 14 & 15) |
|
$ 80.56 | |||||
| 6 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 7 | WP3359587 | Gasket, Tub Ring (Replaces: 64000) |
|
$ 25.22 | |||||
| 8 | 3351985 | Basket |
|
$ 191.30 | |||||
| 9 | 63782 | Tub |
|
$ 185.90 | |||||
| 10 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 11 | WP353244 | Hose, Pressure Switch (Replaces: 386931) |
|
Immediately | $ 53.94 | ||||
| 12 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 10.38 | |||||
| 13 | 280120 | Hose, Tub To Pump (Replaces: 386929) |
|
$ 35.80 | |||||
| 14 | 8577411 | Clip, Retaining (2) (Replaces: 352155) |
|
$ 7.25 | |||||
| 15 | 356398 | Tube, Drain Off |
|
$ 71.61 | |||||
| 16 | 98005 | Screw & Washer (tub Mounting) (4) |
|
- | |||||
| 17 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 |
