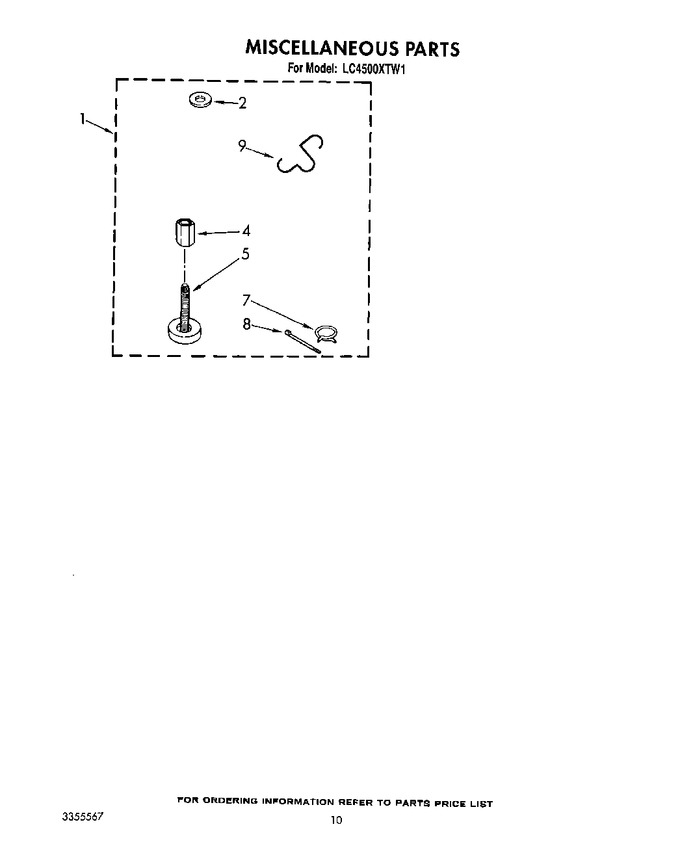

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3356717		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose   (Replaces: 16123)				$ 6.93
4	WP62739		Nut, Lock (4) (3/8-16)   (Replaces: 62739)				$ 6.85
5	WPW10001130		Foot (4)   (Replaces: 389102)			Immediately	$ 7.02
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.11
9	3350222		Retainer, Drain Hose				$ 34.76
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	LIT3356740		Instructions, Installation		Appelez-nous	-
	LIT3356178		Label, Energy Guide		Appelez-nous	-
	LIT3351548		Guide, Use And Care		Appelez-nous	-
	LIT3351410		Guide, Laundry		Appelez-nous	-
	LIT3355567		List, Repair Parts		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	261890		Golden Harvest		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Almond (uncut)		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
