Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10820043 Brake And Drive Tube (complete) (refer To Page 12 For Further Breakdown)   (Replaces: 387948) In-Stock Immediately $ 195.58

2 WP63292 Washer, Spin Tube Thrust   (Replaces: 63292) In-Stock Immediately $ 6.94

3 WPW10080230 Ring, Spin Tube Support   (Replaces: 62697) Special Order $ 10.82

4 285353 Ring, Retainer   (Replaces: 63283) Special Order $ 7.30

5 285785 Clutch (complete)   (Replaces: 3350114) In-Stock Immediately $ 61.22

6 285790 Band And Lining (includes Illus. 7 & 8)   (Replaces: 388190) In-Stock Immediately $ 38.92

7 285790 Spring, Clutch   (Replaces: 3354732) In-Stock Immediately $ 38.92

8 WP62646 Cap, Clutch Spring (2)   (Replaces: 62646) Special Order $ 6.80

9 3360629 Gearcase (complete) (refer To Page 11 For Further Breakdown)   (Replaces: 389246) In-Stock Immediately $ 422.22

10 62735 Screw, 5/16-24 X 3/16 (3) (gearcase To Tub Support) Appelez-nous -
11 WP62611 Plate, Motor Mount To Gearcase   (Replaces: 62611) Special Order $ 105.39

12 WP3400516 Screw, 5/16-24 X 5/8 (2)   (Replaces: 98062) In-Stock Immediately $ 6.47

13 285753A Coupling, Motor & Isolating   (Replaces: 661560) In-Stock Immediately $ 23.31

14 WP661600 Motor, Main Drive   (Replaces: 3349644) In-Stock Immediately $ 207.58

18 WP3363394 Pump (complete)   (Replaces: 3352492) In-Stock Immediately $ 55.49

19 WP8546127 Retainer, Pump   (Replaces: 62700) Special Order $ 7.33

20 62850 Switch, Main Drive Motor Appelez-nous -
21 WP62691 Grommet, Motor (4)   (Replaces: 62691) Special Order $ 10.64

22 WPW10086010 Retainer, Motor (2)   (Replaces: 3349637) Special Order $ 7.15

25 WP273556 Screw, 10-16 X 5/8   (Replaces: 3387485) In-Stock Immediately $ 7.04

26 WP3946532 Shield, Motor   (Replaces: 3351341) Special Order $ 28.15

27 WP3355454 Clip, Anti-rattle   (Replaces: 3355454) Special Order $ 7.06


    View Diagram in Separate Window     Print Icon   Print Part List

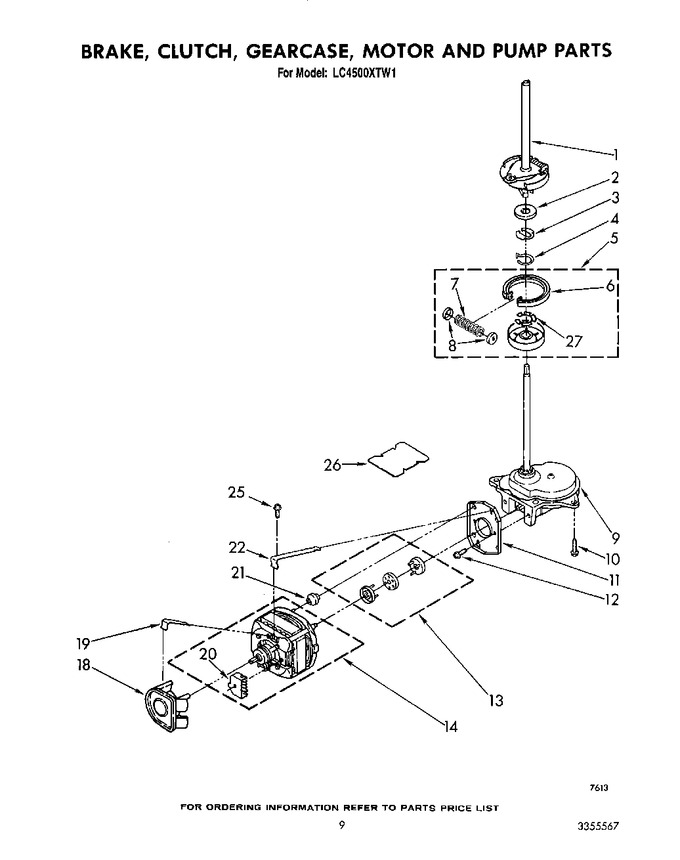

Diagram for LC4500XTW1
