View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

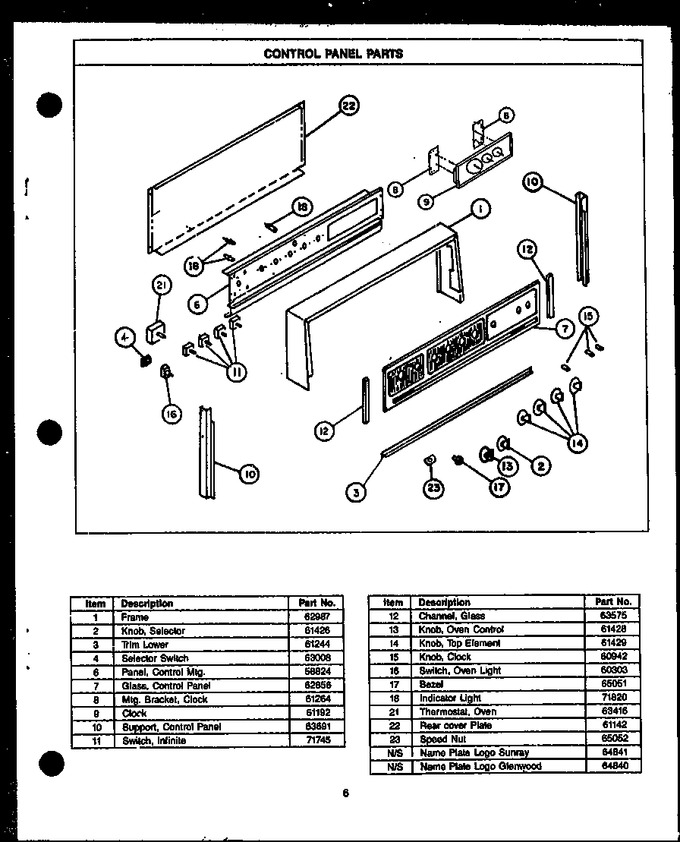

01 - Control Panel Parts
02 - Electrical Components
03 - Lower Oven Cabinet Assy
04 - Lower Storage Drawer
05 - Oven Door Parts
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y62987 | Frame |
|
- | |||||
| 2 | 61426 | Knob, Selector |
|
$ 59.99 | |||||
| 3 | 61244 | Trim Lower |
|
- | |||||
| 4 | 63008 | Selector Switch |
|
- | |||||
| 6 | 0058824 | Control Pnl, Backguard |
|
- | |||||
| 7 | Y62856 | Glass, Control Panel |
|
- | |||||
| 8 | Y61264 | Mounting Plate, Clock |
|
- | |||||
| 9 | 61192 | Clock |
|
$ 175.27 | |||||
| 10 | Y63691 | Support, Control Panel |
|
- | |||||
| 11 | 71745 | Switch, Infinite |
|
- | |||||
| 12 | Y63575 | Channel, Glass |
|
- | |||||
| 13 | 61428 | Panel,graphic-kleenmai |
|
- | |||||
| 14 | 61429 | Knob, Top Element |
|
- | |||||
| 15 | 60942 | Knob, Clock |
|
$ 33.44 | |||||
| 16 | 60303 | Switch, Oven Light |
|
- | |||||
| 17 | 65051 | Bezel, Switches |
|
$ 11.25 | |||||
| 18 | Y71820 | Indicator Light |
|
- | |||||
| 21 | Y63416 | Thermostat, Oven |
|
- | |||||
| 22 | 61142 | Rear Cover Plate |
|
- | |||||
| 23 | 65052 | Speed Nut |
|
- | |||||
| NI | 64840 | Name Plate Logo Glenwood |
|
- | |||||
| NI | 64841 | Name Plate Logo Sunray |
|
- |
