01 - Control Panel Parts


02 - Electrical Components


03 - Lower Oven Cabinet Assy


04 - Lower Storage Drawer


05 - Oven Door Parts


06 - Page 1

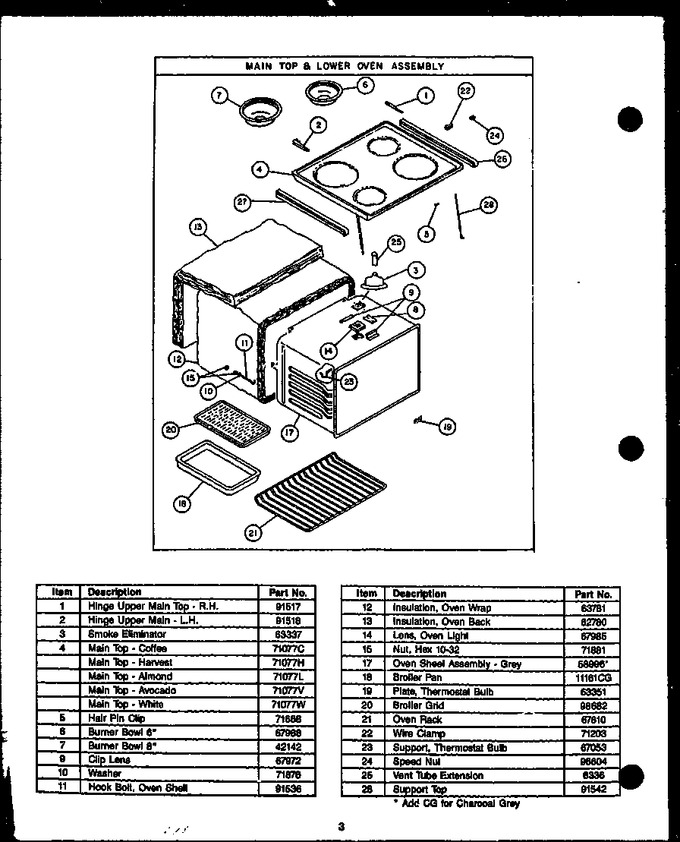

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0091517		Bracket Assembly		Appelez-nous	-
2	0091518		Bracket Assembly		Appelez-nous	-
3	Y63337		Smoke Eliminator		Appelez-nous	-
4	71077C		Main Top - Coffee		Appelez-nous	-
4	71077V		Main Top - Avocado		Appelez-nous	-
4	71077H		Main Top - Harvest		Appelez-nous	-
4	71077L		Main Top - Almond		Appelez-nous	-
4	71077W		Main Top - White		Appelez-nous	-
5	Y71668		Hair Pin Clip		Appelez-nous	-
6	WPW10196406		Burner Bowl 6``   (Replaces: 67988)			Immediately	$ 12.05
7	WPW10196405		Bowl, Burner 8`` (chrome)   (Replaces: Y0042142)			Immediately	$ 15.56
9	67972		Clip, Lens			Immediately	$ 10.80
10	Y71876		Washer		Appelez-nous	-
11	Y0091536		Hook Bolt		Appelez-nous	-
12	Y63781		Insulation, Oven Wrap		Appelez-nous	-
13	Y62780		Insulation, Oven Back		Appelez-nous	-
14	67985		Lens, Oven Light		Appelez-nous	-
15	Y71881		Nut, Hex 10-32		Appelez-nous	-
17	58996CG		Oven Shell		Appelez-nous	-
18	4396923		Pan, Broiler   (Replaces: 11161CG)			Immediately	$ 52.04
19	Y63351		Capillary Hole Cover		Appelez-nous	-
20	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
21	WP314763J		Oven Rack - Regular   (Replaces: 67810)				$ 70.11
22	71203		Wire Clamp		Appelez-nous	-
23	67053		Clip, Thermostat Bulb				$ 71.06
24	Y0096604		Nut, Type ``u``		Appelez-nous	-
25	6336		Vent Tube Extension		Appelez-nous	-
28	Y0091542		Support, Maintop		Appelez-nous	-
