01 - Control Panel Parts


02 - Electrical Components

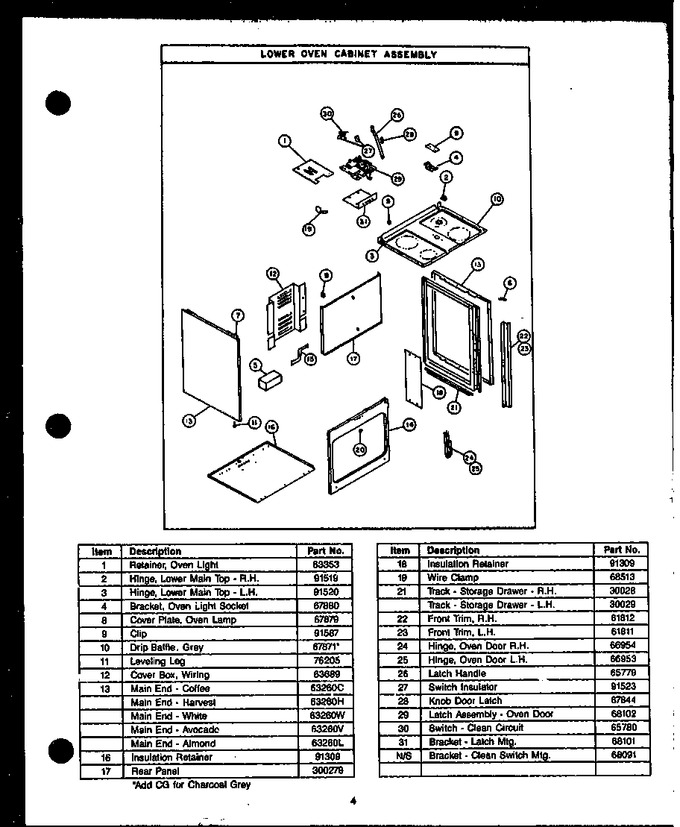

03 - Lower Oven Cabinet Assy


04 - Lower Storage Drawer


05 - Oven Door Parts


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y63353		Retainer, Oven Light		Appelez-nous	-
2	Y0091519		Bracket		Appelez-nous	-
3	Y0091520		Bracket		Appelez-nous	-
4	67880		Housing, Oven Lamp		Appelez-nous	-
8	Y67879		Cover Plate, Oven Lamp		Appelez-nous	-
9	Y0091587		Cable, Clip Esm		Appelez-nous	-
10	67871CG		Drip Baffle		Appelez-nous	-
11	76205		Leveling Leg		Appelez-nous	-
12	Y63689		Cover Box, Wiring		Appelez-nous	-
13	63260L		Main End - Almond		Appelez-nous	-
13	63260V		Main End - Avocado		Appelez-nous	-
13	63260C		Main End - Coffee		Appelez-nous	-
13	63260W		Main End - White		Appelez-nous	-
13	63260H		Main End - Harvest		Appelez-nous	-
16	91309		Insulation Retainer		Appelez-nous	-
17	300279		Rear Panel		Appelez-nous	-
18	91309		Insulation Retainer		Appelez-nous	-
19	68513		Clamp, Power Cord		Appelez-nous	-
21	68513		Clamp, Power Cord		Appelez-nous	-
21	30029		Track - Storage Drawer - L.h.		Appelez-nous	-
22	Y61812		Assy,wiring Harness-up		Appelez-nous	-
23	61811		Front Trim, L.h.		Appelez-nous	-
24	Y66954		Oven Door Hinge - R.h.		Appelez-nous	-
25	Y66953		Oven Door Hinge - L.h.		Appelez-nous	-
26	Y65779		Latch Handle		Appelez-nous	-
27	Y0091523		Insulation, Esm		Appelez-nous	-
28	67844		Knob, Door Latch				$ 27.03
29	Y68102		Latch Assembly - Oven Door		Appelez-nous	-
30	65780		Switch, Oven Door Latch		Appelez-nous	-
31	68101		Bracket, Switch				$ 352.02
NI	Y68091		Bracket - Clean Switch Mfg.		Appelez-nous	-
