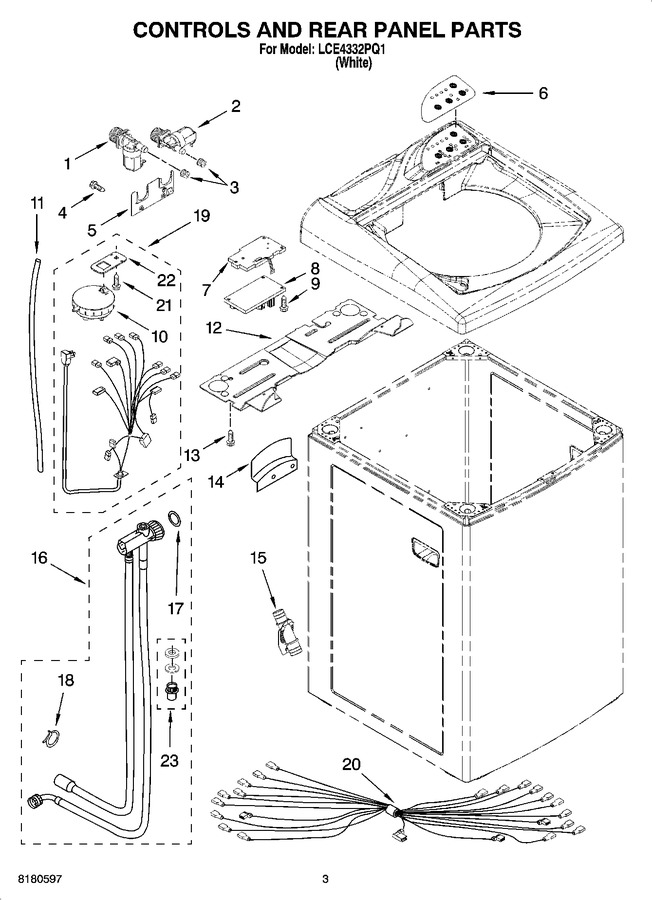

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 326032994 | Inlet Valve (hot) |
|
$ 72.80 | |||||
| 2 | 326032997 | Inlet Valve (cold) |
|
$ 75.92 | |||||
| 3 | 326033919 | Seal, Inlet Valve (2) |
|
- | |||||
| 4 | 326018823 | Screw (2) |
|
- | |||||
| 5 | 326027101 | Bracket, Inlet Valve |
|
- | |||||
| 6 | 326033923 | Overlay |
|
$ 84.63 | |||||
| 7 | 326048437 | Interface Board |
|
$ 164.35 | |||||
| 8 | 326048436 | Control, Electronic |
|
$ 280.20 | |||||
| 9 | 326041720 | Screw (6) |
|
- | |||||
| 10 | 326034589 | Switch, Water Level |
|
$ 81.15 | |||||
| 11 | W10779052 | Hose, Pressure Switch (Replaces: 326046803) |
|
$ 28.20 | |||||
| 12 | 326034866 | Shield, Controls |
|
- | |||||
| 13 | WP3400094 | Screw (2) (Replaces: 8182293) |
|
$ 7.14 | |||||
| 14 | 326034862 | Bracket, Hose Storage |
|
- | |||||
| 15 | 326034647 | Connector, Drain Hose |
|
$ 38.09 | |||||
| 16 | W10849778 | Hose Coupler Assembly (Replaces: 326048456) |
|
$ 271.76 | |||||
| 17 | WP16123 | Washer (Replaces: 326037688) |
|
$ 6.93 | |||||
| 18 | WP285655 | Clamp, Hose (Replaces: 326038497) |
|
Immediately | $ 7.55 | ||||
| 19 | 326048253 | Power Cord Asm |
|
$ 277.01 | |||||
| 20 | 326051030 | Harness, Wiring (main) (Replaces: 326032995) |
|
$ 232.01 | |||||
| 21 | 326041720 | Screw |
|
- | |||||
| 22 | 326044485 | Bracket, Pressure Switch Mounting |
|
- | |||||
| 23 | WPW10254672 | Adapter, Faucet (Replaces: 326039784) |
|
Immediately | $ 49.54 |
