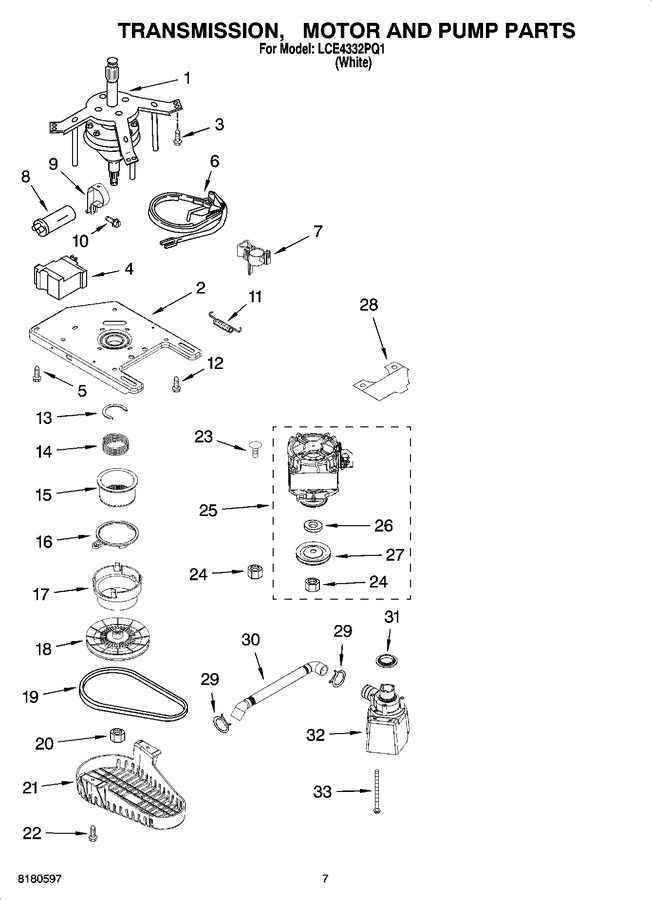

04 - Transmission, Motor And Pump Parts


05 - Water System Parts, Miscellaneous Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	326042225		Gearcase & Tub Support Asm				$ 301.90
2	326042919		Motor Plate & Bearing Assembly				$ 55.49
3	326016091		Screw, Tub Support (5)		Appelez-nous	-
4	326042226		Brake Actuator				$ 78.66
5	326010229		Screw, Brake Actuator (2)		Appelez-nous	-
6	280121		Brake Band Asm   (Replaces: 326038821)				$ 190.74
7	326016785		Support, Brake Band				$ 23.47
8	W10793290		Capacitor   (Replaces: 326032990)				$ 128.01
9	326036955		Clamp, Capacitor		Appelez-nous	-
10	8182295		Screw		Appelez-nous	-
11	280121		Spring, Brake   (Replaces: 326044509)				$ 190.74
12	8182299		Screw, Gearcase To Motor Plate (4)		Appelez-nous	-
13	8182268		Clip				$ 72.31
14	8182269		Spring, Splutch				$ 17.62
15	8182263		Slider, Splutch				$ 16.64
16	8182265		Cam Ring, Splutch				$ 76.14
17	8182266		Cam, Splutch				$ 48.71
18	8182264		Pulley, Splutch		Appelez-nous	-
19	8182226		Drive Belt				$ 34.34
20	8182297		Nut				$ 7.28
21	326044746		Shield, Pulley		Appelez-nous	-
22	8182295		Screw (2)		Appelez-nous	-
23	8182304		Bolt, Motor Mounting (2)				$ 39.49
24	90984		Nut   (Replaces: 326020253)		Appelez-nous	-
25	326032993		Motor, Main Drive				$ 329.81
26	8182305		Washer		Appelez-nous	-
27	8182281		Pulley, Motor		Appelez-nous	-
28	326033905		Shield, Motor		Appelez-nous	-
29	WP285655		Clamp, Hose   (Replaces: 326031815)			Immediately	$ 7.55
30	326036549		Hose, Pump To Tub				$ 23.27
31	326031821		Seal, Pump To Tub				$ 53.08
32	326032991		Pump (complete)		Appelez-nous	-
33	326029005		Screw, Pump (3)				$ 24.60
