SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Transmission, Motor And Pump Parts

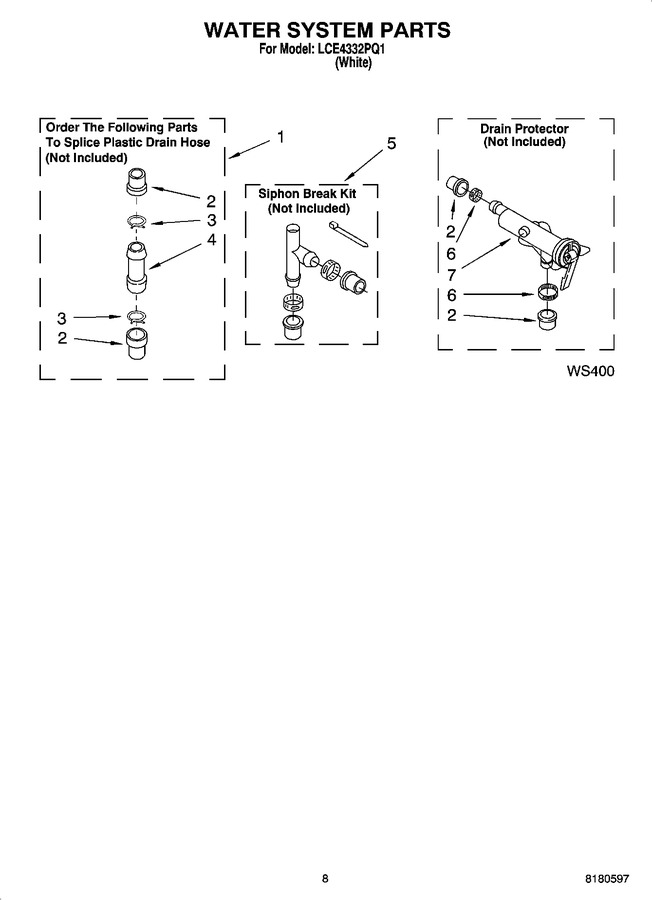

05 - Water System Parts, Miscellaneous Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10254672		Adapter, Faucet   (Replaces: 326039784)			Immediately	$ 49.54
1	285442		Connector Kit, Plastic Drain Hose				$ 84.62
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
2	285321		Sleeve Kit, (contains 2 Sleeves)				$ 75.52
3	WP285655		Clamp, Hose   (Replaces: 370447)			Immediately	$ 7.55
3	WP16123		Washer   (Replaces: 16123)				$ 6.93
4	WP2205813		Cable Tie   (Replaces: 3429563)				$ 6.95
4	WP16272		Connector Straight   (Replaces: 16272)				$ 7.04
5	661581		Clamp, Hose		Appelez-nous	-
5	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 119.93
6	3428855		Miscellaneous Parts Bag Miscellaneous Parts Must Be Ordered Separately.		Appelez-nous	-
6	WP285655		Clamp, Hose   (Replaces: 65349)			Immediately	$ 7.55
7	367031		Drain Protector (not Included)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	WP384496		Coupling, Hose   (Replaces: 384496)				$ 77.48
	285768		Stationary To Portable				$ 211.11
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	49971		White				$ 389.43
	4396746		Portable To Fixed				$ 90.56
	N/A		Coupling		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46

    View Diagram in Separate Window       Print Part List
