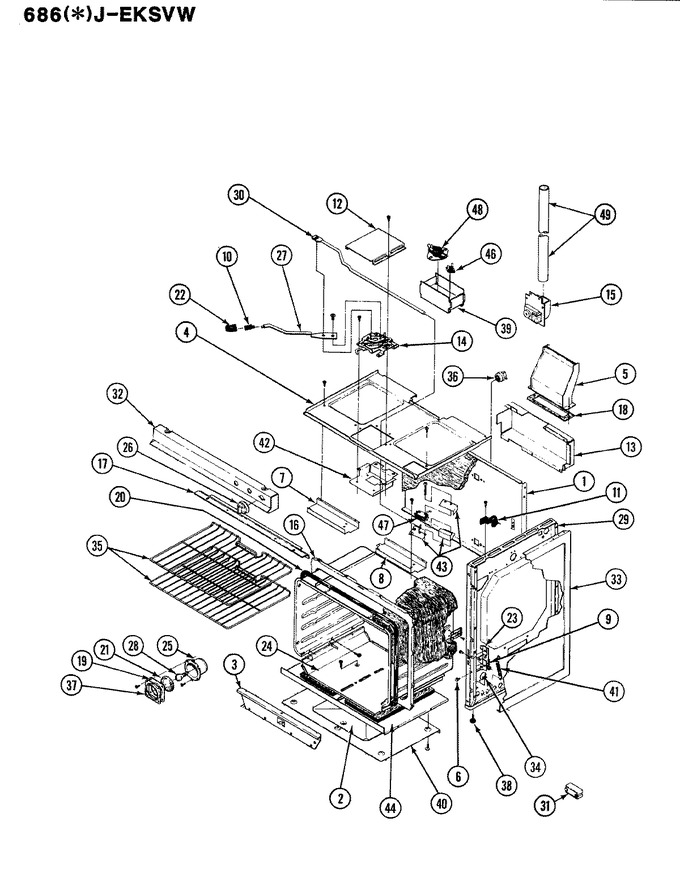

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F094-80 | Back, Main | 1 |
|
- | ||||
| 2 | 3601F116-45 | Baffle | 1 |
|
- | ||||
| 3 | 7401P011-60 | Block, Disconnect | 1 |
|
- | ||||
| 3 | 7401P010-60 | Block, Upper Discont | 1 |
|
- | ||||
| 3 | 3601F106-51 | Baffle, Side Panel | 1 |
|
- | ||||
| 3 | 3601W125-12 | Baffle, Ovn Front | 1 |
|
- | ||||
| 3 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 3 | 7116P003-60 | Bolt | 1 |
|
- | ||||
| 4 | 4011F075-80 | Box, Burner | 1 |
|
- | ||||
| 4 | 2205F012-13 | Bottom, Oven | 1 |
|
- | ||||
| 5 | 3802F050-45 | Brace, Inner Side | 1 |
|
- | ||||
| 5 | 3801F213-45 | Bracket | 01 |
|
- | ||||
| 5 | 3801F022-45 | Bracket, Disconnect | 1 |
|
- | ||||
| 5 | 3801F024-51 | Bracket | 1 |
|
- | ||||
| 5 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 5 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 5 | 3801F093-51 | Bracket | 1 |
|
- | ||||
| 5 | 3801F180-45 | Bracket, Spark Module | 1 |
|
- | ||||
| 5 | 3802F003-80 | Brace | 1 |
|
- | ||||
| 5 | 4006W026-13 | Box, Flue | 1 |
|
- | ||||
| 5 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 6 | 3818F025-45 | Channel, Air | 1 |
|
- | ||||
| 6 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 7 | 3818F032-80 | Channel - Air Duct | 1 |
|
- | ||||
| 8 | 3818F027 | Channel, Switch Lock | 1 |
|
- | ||||
| 9 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 10 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 11 | 7112P045-60 | Clip, Wire | 1 |
|
- | ||||
| 11 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 12 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 13 | 4005F139-51 | Cover, Switch | 1 |
|
- | ||||
| 13 | 4005F174-80 | Cover, Module | 1 |
|
- | ||||
| 13 | 4005F258-51 | Cover, Oven Valve | 1 |
|
- | ||||
| 14 | 8002P021-60 | Catch, Door Lock | 1 |
|
- | ||||
| 15 | 7427P002-60 | Fan Assembly | 1 |
|
- | ||||
| 16 | 2201F061-23 | Front, Oven Upper | 1 |
|
- | ||||
| 17 | 4012F013-80 | Front, Burner Box | 1 |
|
- | ||||
| 18 | 7201P015-60 | Gasket, Lamp Retainer | 1 |
|
- | ||||
| 18 | 7201P013-60 | Gasket | 1 |
|
- | ||||
| 19 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 20 | 7201P036-60 | Gasket, Oven | 1 |
|
$ 118.90 | ||||
| 21 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 22 | 7701P068-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 22 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 23 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 24 | 4001F036-45 | Housing, Bake Burner | 1 |
|
- | ||||
| 25 | 4396923 | Insert (Replaces: 3413F002-11) | 1 |
|
Immediately | $ 52.04 | |||
| 25 | 7711P322-60 | Knob, Thermostat | 1 |
|
- | ||||
| 25 | 7711P261-60 | Knob, Selector | 1 |
|
- | ||||
| 25 | 4001F020-13 | Housing | 1 |
|
- | ||||
| 26 | 7711P173-60 | Knob, Valve | 1 |
|
- | ||||
| 27 | 8009P010-60 | Lever, Door Lock | 1 |
|
- | ||||
| 28 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 29 | 4009W038-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 30 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 31 | 7431P006-60 | Module, Spark | 1 |
|
- | ||||
| 31 | 2614F008-80 | Panel, Lower Front | 1 |
|
- | ||||
| 31 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 1 |
|
Immediately | $ 52.04 | |||
| 32 | 7712A061-60 | Trim Assy, Manifold | 1 |
|
- | ||||
| 33 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 33 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 33 | 2618F052-76 | Panel, Side (hv Wht) | 1 |
|
- | ||||
| 33 | 2618F052-78 | Panel, Side Coffee | 1 |
|
- | ||||
| 33 | 2618F052-77 | Panel, Side (avoc) | 1 |
|
- | ||||
| 34 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 35 | 7801P031-60 | Rack, Oven | 1 |
|
- | ||||
| 36 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 37 | 3804F012-45 | Retainer, Lamp Guard | 1 |
|
- | ||||
| 38 | 7101P252-60 | Screw, Leveling | 1 |
|
- | ||||
| 39 | 3604F016-51 | Shield | 1 |
|
- | ||||
| 40 | 3604F083-45 | Shield, Svc Drawer | 1 |
|
- | ||||
| 40 | 3604F132-51 | Shield, Heat | 1 |
|
- | ||||
| 40 | 3604F046-80 | Shield, Wire | 1 |
|
- | ||||
| 41 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 41 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 42 | 3807F195 | Support, Latch | 1 |
|
- | ||||
| 43 | 3807F193-45 | Support, Lock Switch | 1 |
|
- | ||||
| 44 | 3807W207-45 | Support, Ov Bot Bar Assy | 1 |
|
- | ||||
| 45 | 3807F219-51 | Support, Therm Disc | 1 |
|
- | ||||
| 45 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 46 | 7403P087-60 | Switch, H.l. Fan | 1-11 |
|
- | ||||
| 46 | 7403P188-60 | Switch | 12 |
|
- | ||||
| 47 | 7403P077-60 | Switch----na | 1 |
|
- | ||||
| 47 | 7403P092-60 | Switch, Selector | 1 |
|
- | ||||
| 48 | 7403P091-60 | Switch, Thermal | 1 |
|
- | ||||
| 49 | 7402P024-60 | Cord, Power | 1 |
|
- | ||||
| 49 | 8026P006-60 | Tube, Air | 1 |
|
- | ||||
| 49 | 8112P035-60 | Manual, Use & Care | 5 |
|
- | ||||
| 49 | 8112P010-60 | Manual, Use & Care | 1-4 |
|
- |
