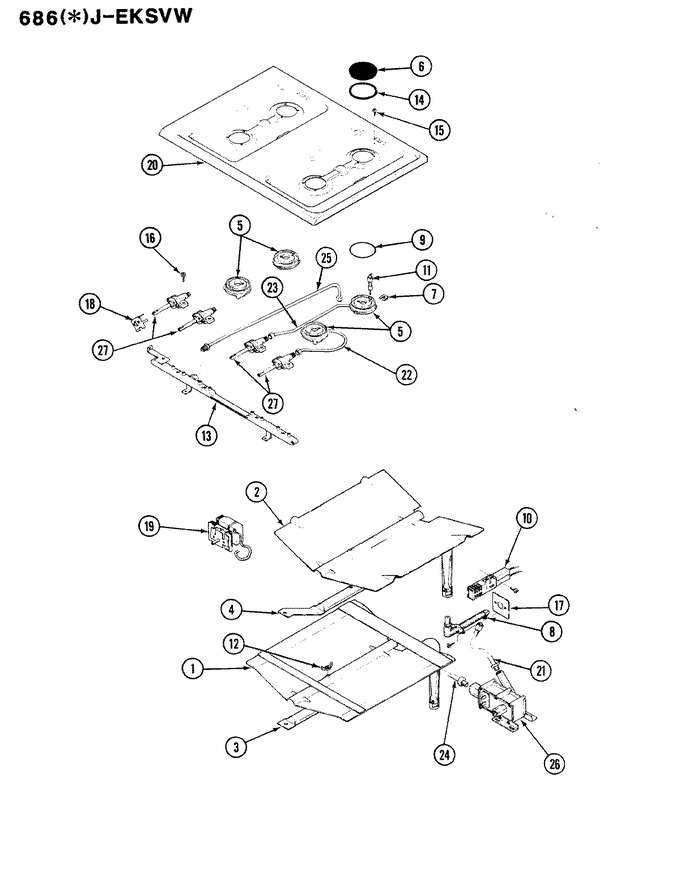

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W129-13 | Baffle, Assy | 1 |
|
- | ||||
| 2 | 3601W130-45 | Baffle, Bake & Broil | 1 |
|
- | ||||
| 2 | 3801F096-45 | Bracket, H.l. Swit | 1 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 1 |
|
- | ||||
| 5 | 5415A015-60 | + Nat. Gas Conversion Kit | 1 |
|
- | ||||
| 5 | 5415A016-60 | Lp Conversion Kit | 1 |
|
- | ||||
| 5 | 7505A155-60 | Burner, Top Complete | 1 |
|
- | ||||
| 6 | 7504P005-60 | Cap, Burner | 1 |
|
- | ||||
| 7 | 7112P072-60 | Clip | 1 |
|
- | ||||
| 8 | 7507P053-60 | Fitting, Straight | 1-10 |
|
- | ||||
| 8 | 7507P028-60 | Fitting, Broil Burner | 1 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note | 11 |
|
- | ||||
| 9 | 7518P004-60 | Grate | 1 |
|
- | ||||
| 9 | 7201P037-60 | Gasket, Burner | 1 |
|
- | ||||
| 10 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 1 |
|
Immediately | $ 60.44 | |||
| 11 | 7103P003-60 | Nut, Burner Cap | 1 |
|
- | ||||
| 11 | 7432P053-60 | Igniter, Burner | 1 |
|
- | ||||
| 12 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 13 | 7510P026-60 | Regulator, Pressure | 1-5 |
|
- | ||||
| 13 | 7510P028-60 | Regulator, Pressure | 6 |
|
- | ||||
| 13 | 7513P086-60 | Pipe, Manifold | 1-10 |
|
- | ||||
| 13 | 7513P093-60 | Manifold Pipe | 11 |
|
- | ||||
| 14 | 2014F001-00 | Ring, Black | 1 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 16 | 3807F329-45 | Support, Valve | 1 |
|
- | ||||
| 17 | WP7403P190-60 | Switch, Top Burner (Replaces: 7403P041-60) | 1 |
|
$ 118.82 | ||||
| 18 | 7515P020-60 | Thermostat, Ov | 1 |
|
- | ||||
| 19 | 2001F063-98 | Top, Main Coffee | 1 |
|
- | ||||
| 19 | 2001F063-97 | Top, Main Fr Avoc. | 1 |
|
- | ||||
| 19 | 2001F063-96 | Top, Main Hvt. Wheat | 1 |
|
- | ||||
| 19 | 2001F063-94 | Top, Main Almond | 1 |
|
- | ||||
| 19 | 2001F063-91 | Top, Main Snow White | 1 |
|
- | ||||
| 20 | Y0936104 | 3/8 X 8 Tubing | 1 |
|
- | ||||
| 20 | Y0936103 | 3/8 X 45 Tubing | 1 |
|
- | ||||
| 21 | 7506P076-60 | Tube, Front Burner | 1 |
|
- | ||||
| 22 | 7506P077-60 | Tube, Rear Burner | 1 |
|
- | ||||
| 23 | 790400 | 3/8 X 72 Tubing | 1 |
|
- | ||||
| 24 | W10124350 | Not Required Part Or See Note | 11 |
|
- | ||||
| 24 | 7506P101-60 | Tube, Manifold Feed----na | 11 |
|
- | ||||
| 24 | 7506P092-60 | Tube, Manifold | 1-10 |
|
- | ||||
| 24 | 7506P091-60 | Tube, Manifold Feed | 1-10 |
|
- | ||||
| 24 | 7506P075-60 | Tube, Regulator----na | 1 |
|
- | ||||
| 25 | 7501P034-60 | Valve, Broil & Bake | 1 |
|
- | ||||
| 26 | 5110A824-60 | Wire, Igniter Front | 1 |
|
- | ||||
| 26 | 7502P100-60 | Valve, Top Burner | 1 |
|
- | ||||
| 26 | 5110A825-60 | Wire, Igniter Rear | 1 |
|
- |
