01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:

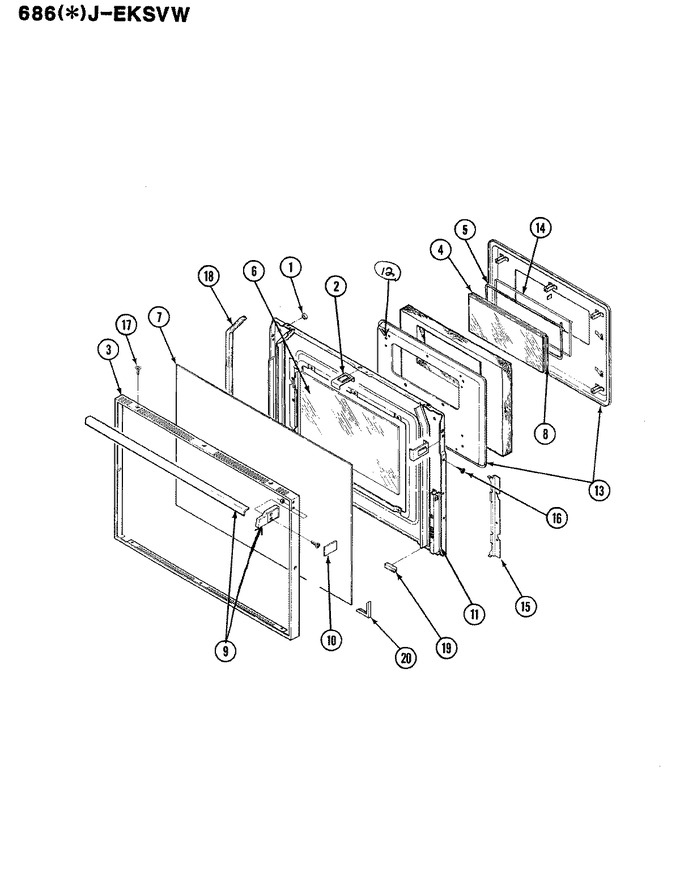

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 1 | 3801F115-51 | Bracket, Drawer | 1 |
|
- | ||||
| 2 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 7706P243-60 | Frame, Door | 1 |
|
- | ||||
| 4 | 7706P177-60 | Frame, Window | 1 |
|
- | ||||
| 5 | 7201P018-60 | Gasket, Window | 1 |
|
- | ||||
| 6 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 7 | 7902P287-60 | Glass, Window Inner | 1 |
|
- | ||||
| 7 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 8 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 8 | 7902P101-60 | Glass, Window Outer | 1 |
|
- | ||||
| 8 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 9 | 7701P014-77 | Handle, Door Avocado | 1 |
|
- | ||||
| 9 | 7701P014-78 | Handle, Drawer Coffee | 1 |
|
- | ||||
| 9 | 7701P014-71 | Handle, Door White | 1 |
|
- | ||||
| 9 | 7701P014-76 | Handle, Door Harvest | 1 |
|
- | ||||
| 9 | 7701P014-74 | Handle, Drawer Almond | 1 |
|
- | ||||
| 9 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 10 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 11 | 2402W128-12 | Lining Assy | 1 |
|
- | ||||
| 12 | 2410F016-51 | Pad, Inner | 1 |
|
- | ||||
| 13 | 2416F018-76 | Panel, Storage Dwr Hvt Wheat | 1 |
|
- | ||||
| 13 | 2416F018-71 | Panel, Storage Dwr White | 1 |
|
- | ||||
| 13 | 2416F018-78 | Panel, Storage Dwr Coffee | 1 |
|
- | ||||
| 13 | 2416F018-74 | Panel, Storage Dwr Almond | 1 |
|
- | ||||
| 13 | 2410W029-12 | Pad Assy, Ov. Dr. | 1 |
|
- | ||||
| 13 | 2416F018-77 | Panel, Storage Dwr Avoc. | 1 |
|
- | ||||
| 14 | 3804F022-45 | Retainer | 1 |
|
- | ||||
| 15 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 16 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 17 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 18 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 19 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 20 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- | ||||
| 20 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 20 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 |
