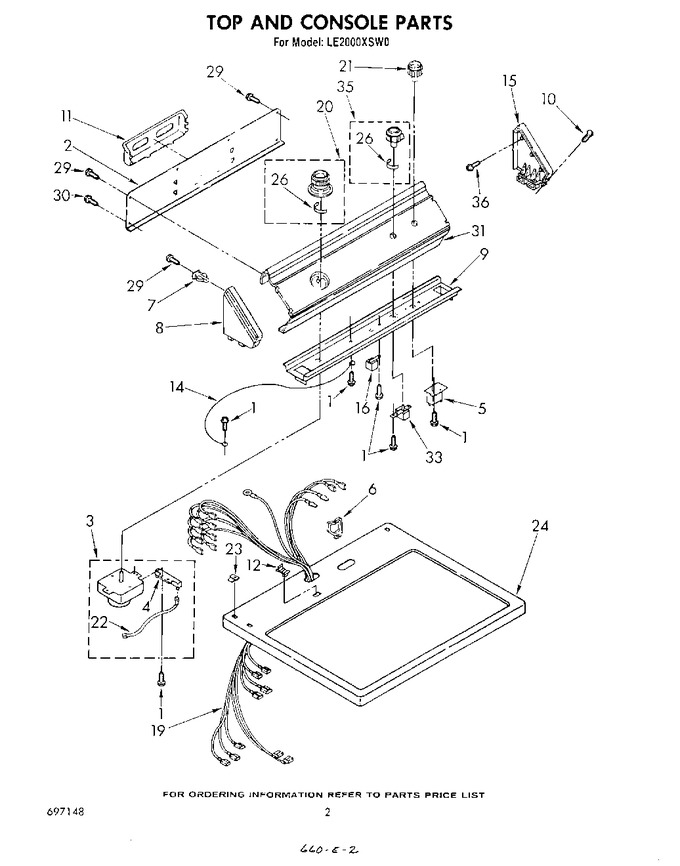

02 - Top And Console


03 - Cabinet And Motor


04 - Bulkhead, Drum And Heater Box, Lite


05 - Front Panel And Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
2	3387706		Panel, Rear Console		Appelez-nous	-
3	697434		Timer & Resistor 60 Hz.		Appelez-nous	-
4	279872		Resistor   (Replaces: 61806)				$ 67.45
5	660936		Switch, Push-to-start 346364 (alt.) 692021 (alt.)		Appelez-nous	-
6	689567		Clip, Wire		Appelez-nous	-
7	689559		Nut, Push-in (4)		Appelez-nous	-
8	63789		Cap, End (l.h.)		Appelez-nous	-
9	63688		Bracket, Control		Appelez-nous	-
10	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
11	63020		Rack, Literature				$ 30.32
12	358472		Stop, Push-in		Appelez-nous	-
14	690853		Wire, Ground		Appelez-nous	-
15	63795		Cap, End. (r.h.)				$ 14.10
16	WP694419		Buzzer, Adjustable   (Replaces: 694419)				$ 114.90
19	3388075		Harness, Wiring		Appelez-nous	-
20	3387900		Timer Knob & Clip Assembly		Appelez-nous	-
21	3387894		Knob, Push-to-start		Appelez-nous	-
22	696098		Wire, Jumper		Appelez-nous	-
23	358473		Nut, Push-in (2)				$ 5.84
24	3387704		Top (toast)		Appelez-nous	-
24	3387705		Top (platinum)		Appelez-nous	-
24	3387701		Top (white)		Appelez-nous	-
24	3387702		Top (almond)		Appelez-nous	-
24	3387703		Top (golden Wheat)		Appelez-nous	-
26	WP688805		Clip, Timer Knob   (Replaces: 688805)			Immediately	$ 7.03
29	WP489069		Screw, Hex Washer Head (4)   (Replaces: 693994)			Immediately	$ 7.07
30	WP693995		Screw, Hex Washer Head (2)   (Replaces: 693995)			Immediately	$ 6.47
31	3387690		Panel, Console		Appelez-nous	-
33	696321		Switch, Temperature Selector		Appelez-nous	-
35	386635		Knob, Temperature Selector		Appelez-nous	-
36	355326		Screw, 13-16 X 5/8		Appelez-nous	-
