Diagram for 04 - Bulkhead, Drum And Heater Box, Lite
04 - Bulkhead, Drum And Heater Box, Lite

Diagram for 05 - Front Panel And Door
05 - Front Panel And Door


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 345396 Clip, Air Duct Appelez-nous -
2 696539 Duct, Air Appelez-nous -
3 WP90767 Screw, 8a X 3/8   (Replaces: 90767) In-Stock Immediately $ 7.04

4 WP3392519 Thermal Fuse (63~c) (299621) (alt.) (341200) (alt.)   (Replaces: 694511) In-Stock Immediately $ 22.46

5 348378 Screen, Back-up Special Order $ 38.60

6 WP339956 Seal, Bulkhead   (Replaces: 339956) In-Stock Immediately $ 7.77

7 WP696426 Wheel, Blower   (Replaces: 696426) In-Stock Immediately $ 117.16

9 WP694674 Thermostat, 140~f (60.0~c) (342812) (alt.)   (Replaces: 660040) In-Stock Immediately $ 45.46

10 696419 Scroll, Fan Special Order $ 123.14

11 279848 Bulkhead   (Replaces: 695930) Special Order $ 312.67

12 279771 Clip, Heater Box   (Replaces: 337272) Special Order $ 12.90

13 685457 Box, Heater Appelez-nous -
14 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

15 61894 Heater, Thermostat Special Order $ 37.38

16 WP488729 Screw, 8-18 X 1/2   (Replaces: 695240) In-Stock Immediately $ 7.01

17 696818 Thermostat, Heater Box Safety 225~f (107.2~c) Special Order $ 39.82

18 279304 Support, Terminal Block   (Replaces: 690259) Appelez-nous -
19 692697 Support, Terminal Block Extension Appelez-nous -
20 279320 Block, Terminal   (Replaces: 690261) In-Stock Immediately $ 61.43

21 WP308685 Screw, Terminal Block To Cabinet   (Replaces: 9416643) In-Stock Immediately $ 7.08

22 696632 Element, Heater Appelez-nous -
23 W11736322 Cover, Terminal Block   (Replaces: 690893) Appelez-nous -
24 WP693995 Screw, Terminal Block Cover Mounting   (Replaces: 693995) In-Stock Immediately $ 6.47

25 279457 Terminal Wire Kit (for Heater Element Wiring Harness Repair) In-Stock Immediately $ 7.13

26 345325 Gusset, Cabinet To Bulkhead (2) Appelez-nous -
27 120377 Nut, 3/8-16 (2) Appelez-nous -
28 3391834 Drum Assembly   (Replaces: 695943) Special Order $ 319.29

29 279735 Seal, Rear Drum   (Replaces: 345648) In-Stock Immediately $ 60.04

30 690372 Screw, 11-16 X 7/8 (6) Appelez-nous -
31 00685207 Baffle, Drum (3)   (Replaces: 685207) Special Order $ 293.40

32 WP3394508 Bearing, Ring   (Replaces: 297936) Special Order $ 113.02

33 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
34 WPW10512946 Ring, Tri   (Replaces: 690997) In-Stock Immediately $ 7.92

35 349241T Roller, Support   (Replaces: 349241) In-Stock Immediately $ 26.58

36 WPW10359270 Shaft, Drum Support (l.h.)   (Replaces: 347364) In-Stock Immediately $ 65.44

37 WPW10359269 Shaft, Drum Support (r.h.)   (Replaces: 339489) In-Stock Immediately $ 42.57

39 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
41 W10828351 Screen, Lint   (Replaces: 348399) In-Stock Immediately $ 50.62

43 W10828351 Cover, Lint Screen   (Replaces: 685273) In-Stock Immediately $ 50.62

46 696658 Seal, Duct To Scroll Appelez-nous -
50 WP348197 Washer, Support (4)   (Replaces: 348197) Special Order $ 6.47

51 WP965173 Screw, 8-18 X 3/8   (Replaces: 695239) In-Stock Immediately $ 9.65

LIT693849 Guide, Dryer Appelez-nous -
285368 Platinum Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 105.40

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.12

72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 124.07

LIT697148 List, Repair Parts Appelez-nous -
LIT3388160 Instructions, Installation Appelez-nous -
LIT3387072 Use & Care Guide Appelez-nous -
261891 Golden Wheat (uncut) Appelez-nous -
285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
978883 Almond (uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350956 Paint, Spray 13 Oz. (almond) Special Order $ 46.30

350941 Leveler (thinner) Appelez-nous -
285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
285365 Toast Appelez-nous -
350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
261890 Golden Wheat Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

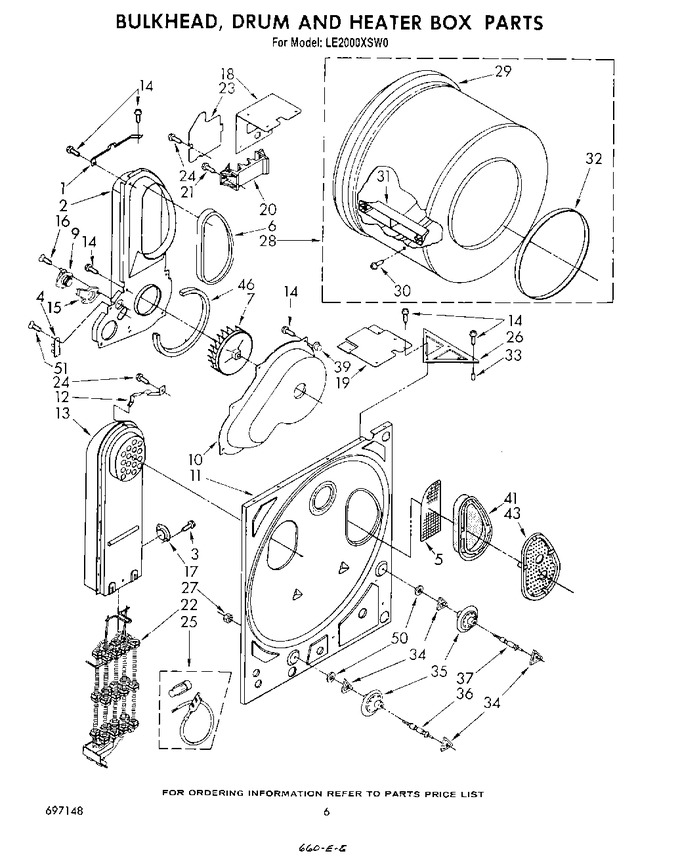

Diagram for LE2000XSW0
