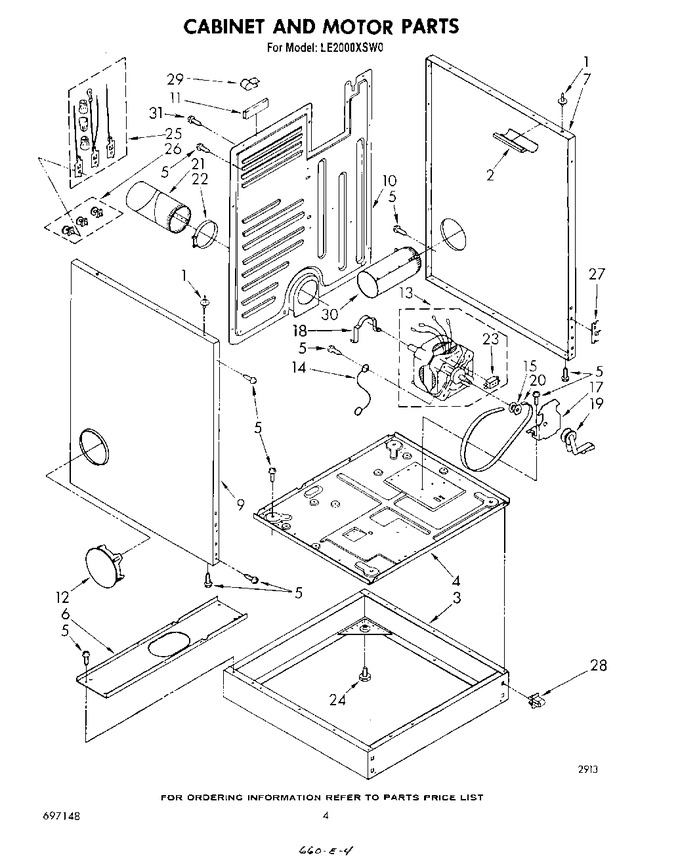

03 - Cabinet And Motor


04 - Bulkhead, Drum And Heater Box, Lite


05 - Front Panel And Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98669		Locator, Top (4)				$ 12.03
2	686770		Support Protector		Appelez-nous	-
3	692671		Pedestal Assembly		Appelez-nous	-
4	WP348726		Base, Cabinet   (Replaces: 348726)				$ 250.43
5	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
6	696019		Coverplate, Pedestal Rear Bottom		Appelez-nous	-
7	695773		Panel, Side (r.h.) (platinum)		Appelez-nous	-
7	692681		Panel, Side (r.h.) (white)		Appelez-nous	-
7	692682		Panel, Side (r.h.) (almond)		Appelez-nous	-
7	692685		Panel, Side (r.h.) (golden Wheat)		Appelez-nous	-
7	695772		Panel, Side (r.h.) (toast)		Appelez-nous	-
9	695774		Panel, Side (l.h.) (toast)		Appelez-nous	-
9	692687		Panel, Side (l.h.) (white)		Appelez-nous	-
9	692688		Panel, Side (l.h.) (almond)		Appelez-nous	-
9	692691		Panel, Side (l.h.) (golden Wheat)		Appelez-nous	-
9	695775		Panel, Side (l.h.) (platinum)		Appelez-nous	-
10	280050		Panel, Rear   (Replaces: 349640)		Appelez-nous	-
11	693067		Protector, Panel (2)		Appelez-nous	-
12	692793		Plug, Side Panel (2) (platinum)		Appelez-nous	-
12	692790		Plug, Side Panel (2) (white)				$ 73.91
12	692791		Plug, Side Panel (2) (almond)		Appelez-nous	-
12	692794		Plug, Side Panel (2) (golden Wheat)		Appelez-nous	-
12	692792		Plug, Side Panel (2) (toast)		Appelez-nous	-
13	279827		Motor, 60 Hz.   (Replaces: 695074)			Immediately	$ 172.76
14	687261		Wire, Ground		Appelez-nous	-
15	W10837625		Pulley, Motor (60 Hz.)   (Replaces: 694872)			Immediately	$ 10.94
17	696541		Base, Motor   (Replaces: 346846)				$ 83.88
18	WP660658		Clamp, Motor (2)   (Replaces: 343481)				$ 7.05
19	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 20.22
20	3394652		Belt, Drive   (Replaces: 345675)			Immediately	$ 47.09
21	692873		Pipe, Exhaust		Appelez-nous	-
22	692874		Clamp, Hose		Appelez-nous	-
23	279827		Switch, Motor Start Use W/695074 Motor   (Replaces: 337351)			Immediately	$ 172.76
24	WP233550		Foot, Dryer (4)   (Replaces: 233550)				$ 7.16
25	279318		Terminal, Tinned & Brass (3) (includes Illus. 26)			Immediately	$ 90.89
26	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
27	W10854425		Clip, Front Panel (2)   (Replaces: 237823)			Immediately	$ 14.00
28	3388595		Clip, Toe Panel (4)		Appelez-nous	-
29	687000		Strain-relief (power Cord)				$ 70.88
30	693738		Pipe, Exhaust Extension (used To Direct Dryer Exhaust Toward Side Or Bottom)		Appelez-nous	-
31	WP681414		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 690989)			Immediately	$ 7.07
