View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling
09 - Compressor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

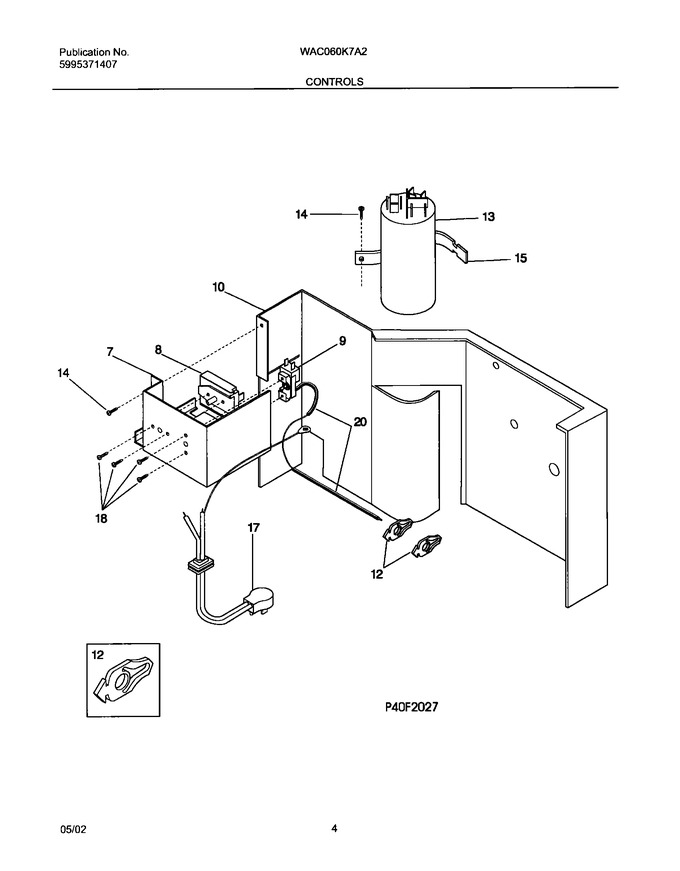

| 7 | 309350302 | Control Box |
|
- | |||||
| 7 | 5303015427 | Screw |
|
- | |||||
| 10 | 309602404 | Bulkhead |
|
- | |||||
| 10 | 309111201 | Grommet,wire Protector |
|
- | |||||
| 12 | 309101202 | Clip,retainer ,temp Sensor ,(2) |
|
- | |||||
| 13 | 5303302855 | Cover-capacitor |
|
- | |||||
| 14 | 5303285199 | Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 18 | 5303007754 | Screw |
|
- | |||||
| 20 | 5304417582 | Sleeve,temp Sensor ,6 In. |
|
- | |||||
| F13 | 5304419792 | Capacitor,40+5/370 |
|
- | |||||
| F17 | 309343101 | Cord-electric Power,18 Awg ,115 V |
|
- | |||||
| F8 | 5303323284 | Switch-selector |
|
- | |||||
| F9 | 5304402838 | Control-temperature |
|
- |
